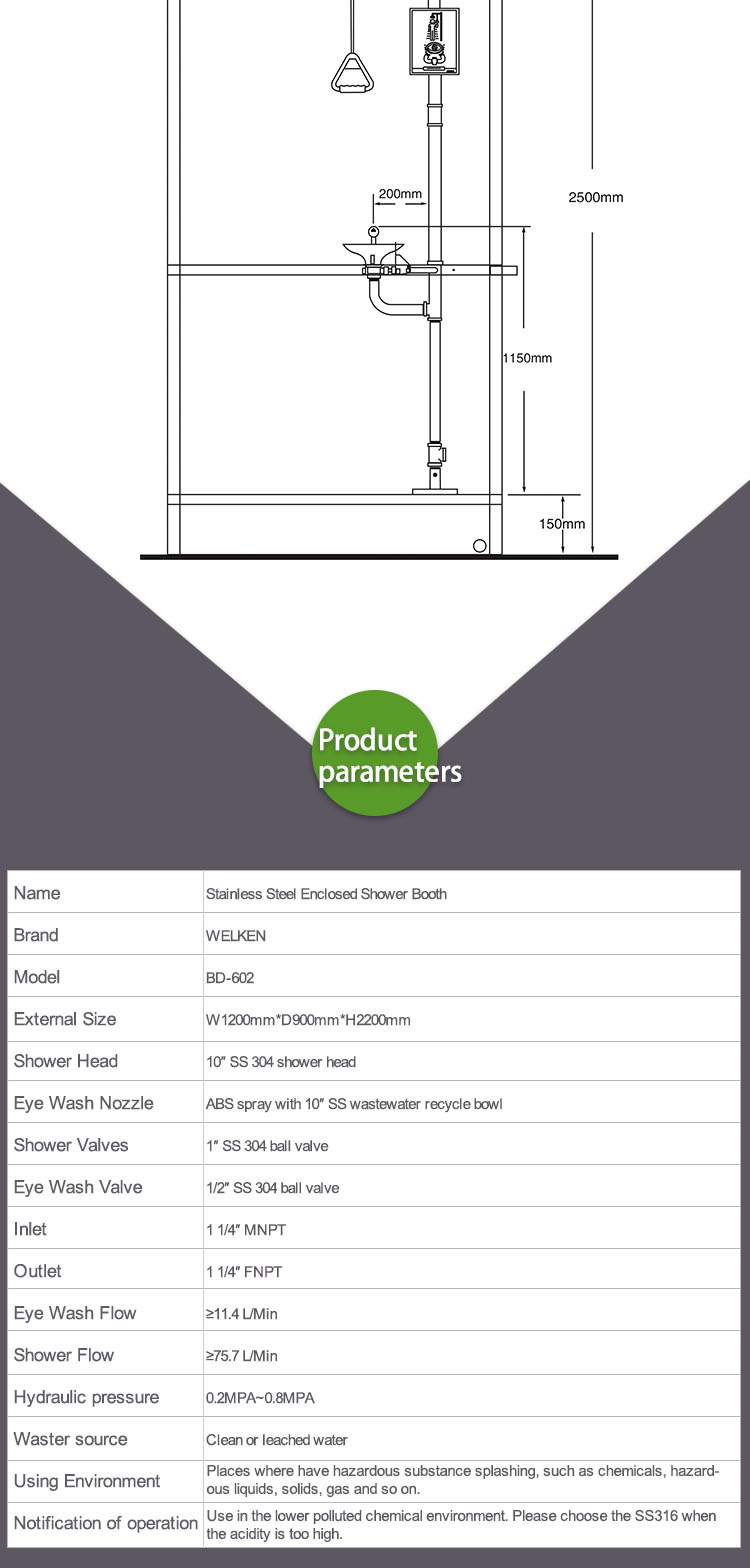

Technical Data:
● External Dimensions: W 1200mm * D 900mm * H 2500mm
● Head: 10” stainless steel
● Eye Wash Nozzle: ABS spraying with 10” waste water recycle bowl
● Shower Valve: 1” 304 stainless steel ball valve
● Eye Wash Valve: 1/2” 304 stainless steel ball valve
● Supply: 1 1/4″ MNPT
● Waste: 1 1/4″ FNPT
● Eye Wash Flow ≥11.4 L/Min, shower flow≥75.7 L/Min
● Hydraulic Pressure: 0.2MPA-0.8MPA
● Original Water: Drinking water or filtered water
● Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
● Special Note: If the acid concentration is too high, recommend to use 316 stainless steel.
● Standard: ANSI Z358.1-2014

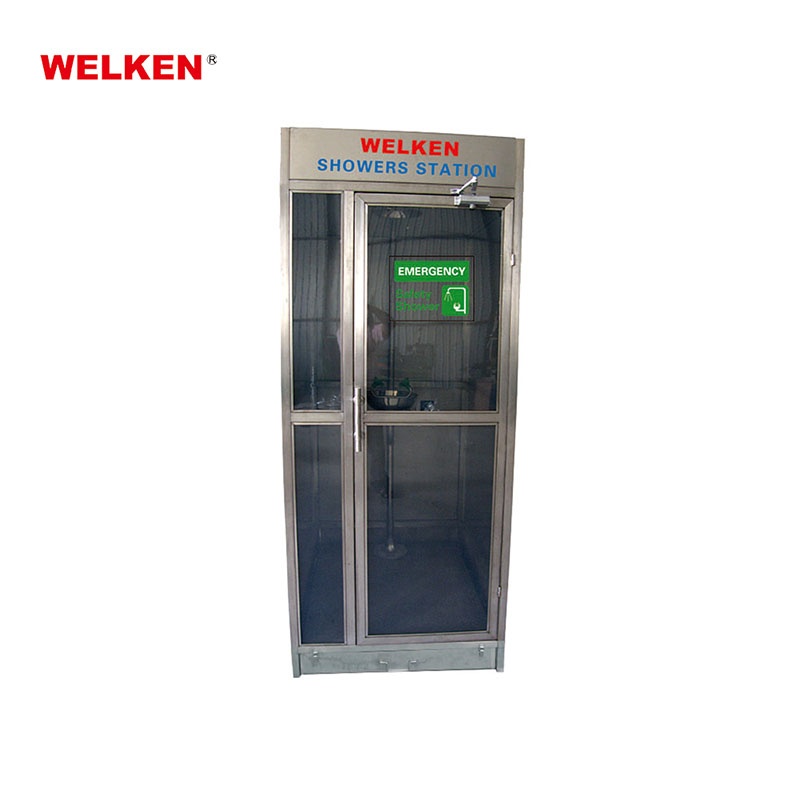

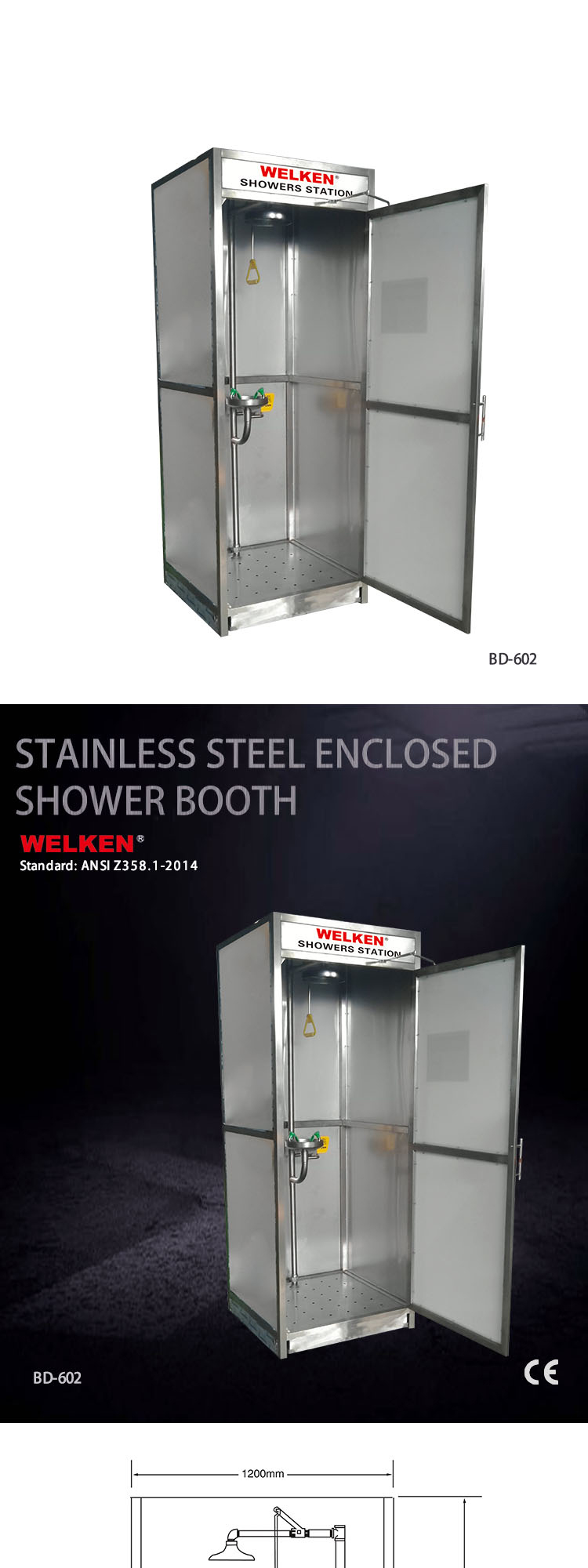

The 304 stainless steel flushing room is specially designed for special environments. It can be used not only for flushing, eye washing, waste water recycling, but also without polluting the environment. Moreover, it hides privacy and is very suitable for clean environments and environments with special needs. It can be added with antifreeze function according to customer requirements, which is beautiful and neat.
