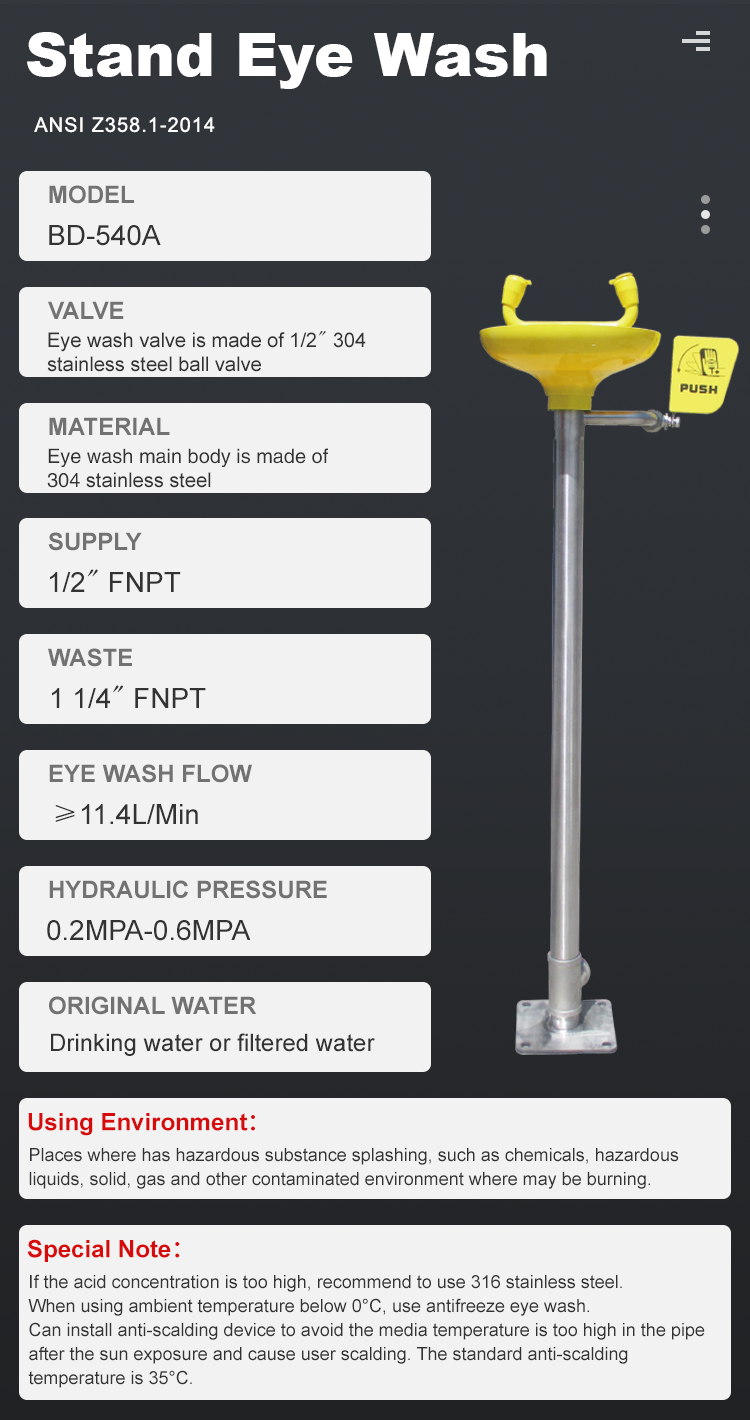

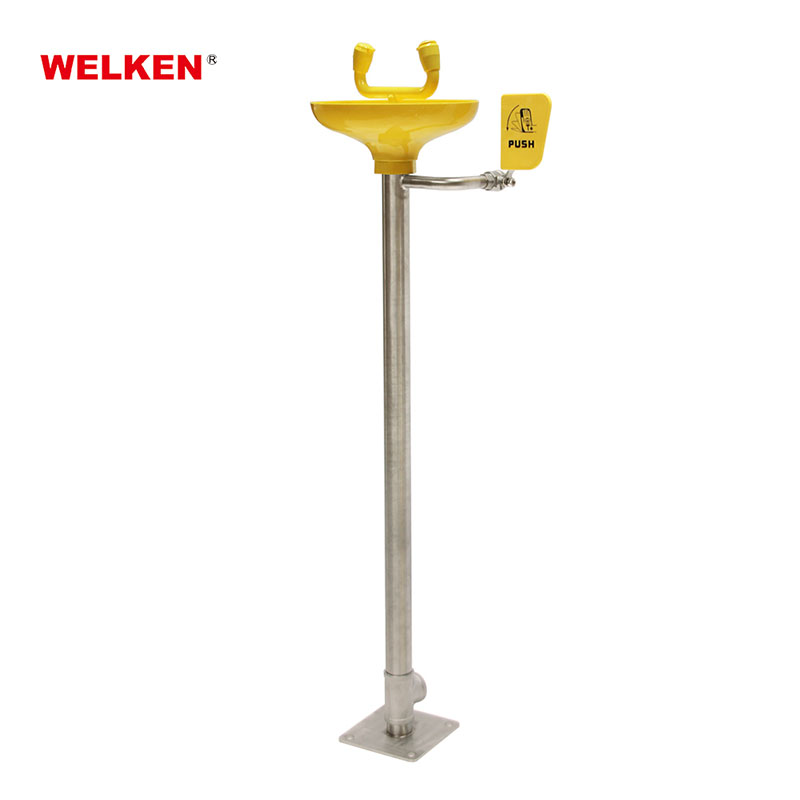

Technical Data:

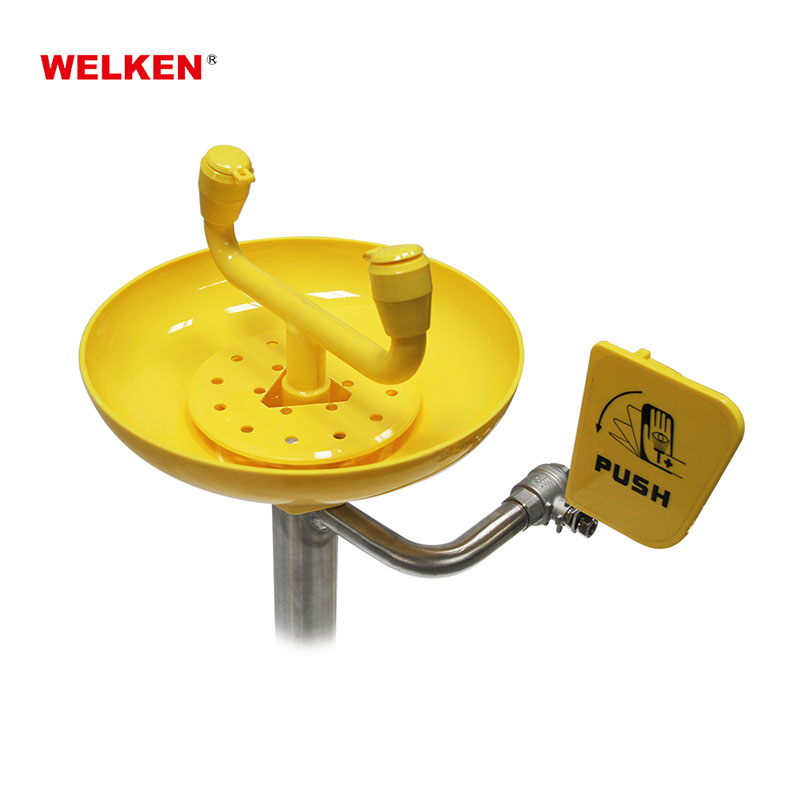

● Valve: Eye wash valve is made of 1/2” 304 stainless steel ball valve
● Supply: 1/2″ FNPT
● Waste: 1 1/4″ FNPT
● Eye Wash Flow≥11.4L/Min
● Hydraulic Pressure: 0.2MPA-0.6MPA
● Original Water: Drinking water or filtered water

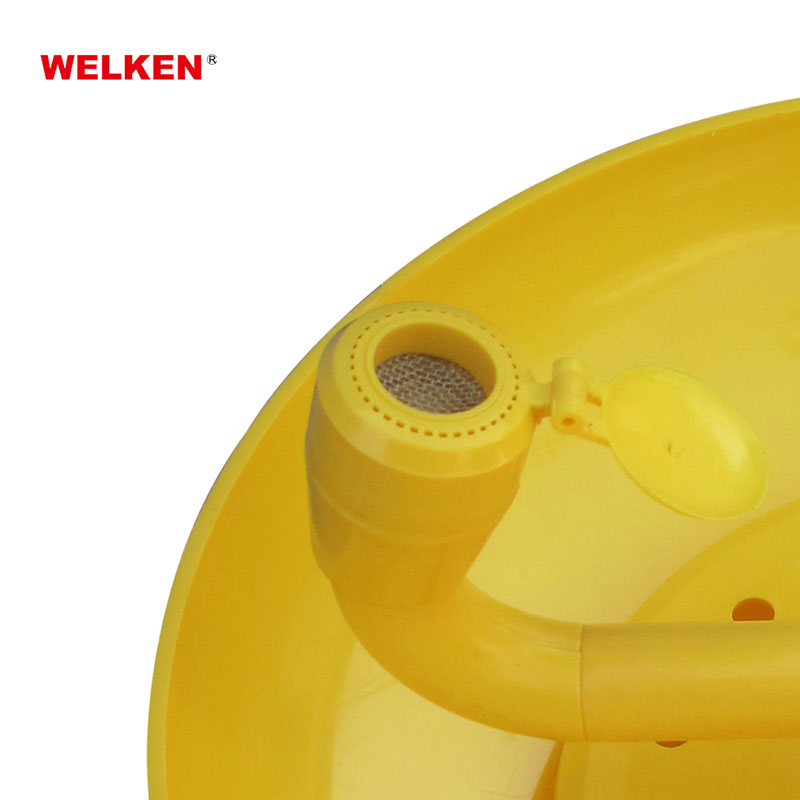

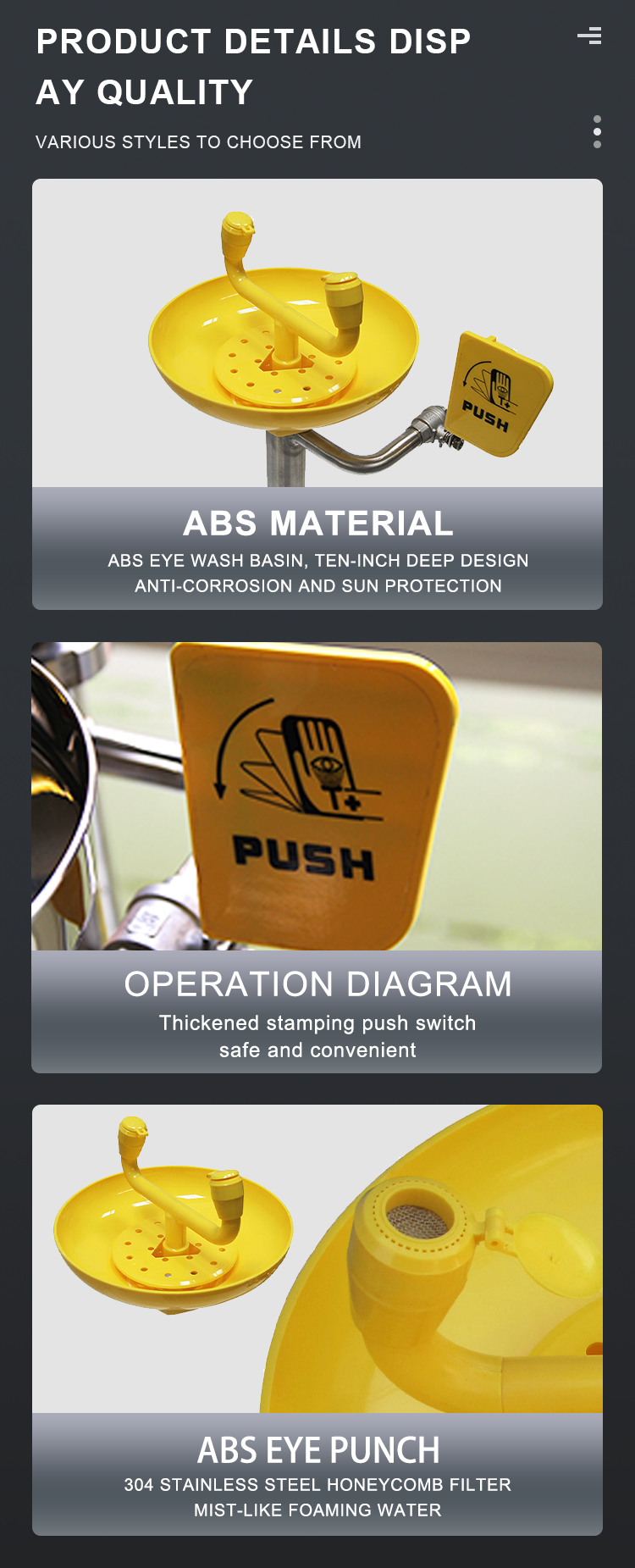

● 304 stainless steel and ABS bowl and nozzle
● Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and other contaminated environment where may be burning.
● Special Note: If the acid concentration is too high, recommend to use 316 stainless steel.
When using ambient temperature below 0℃, use antifreeze eye wash.
Can install anti-scalding device to avoid the media temperature is too high in the pipe after
the sun exposure and cause user scalding.The standard anti-scalding temperature is 35℃.
● Standard: ANSI Z358.1-2014
