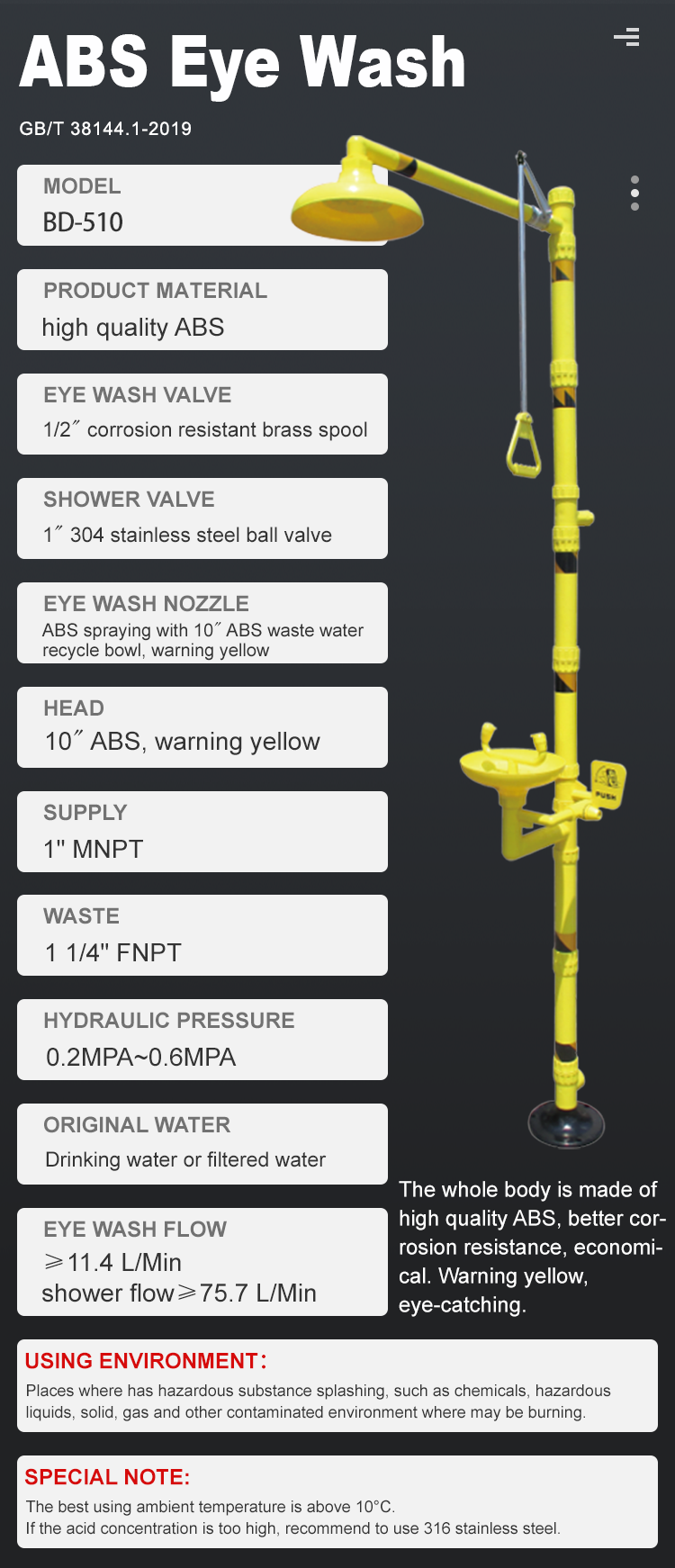

Technical Data:
● Head: 10” ABS, warning yellow

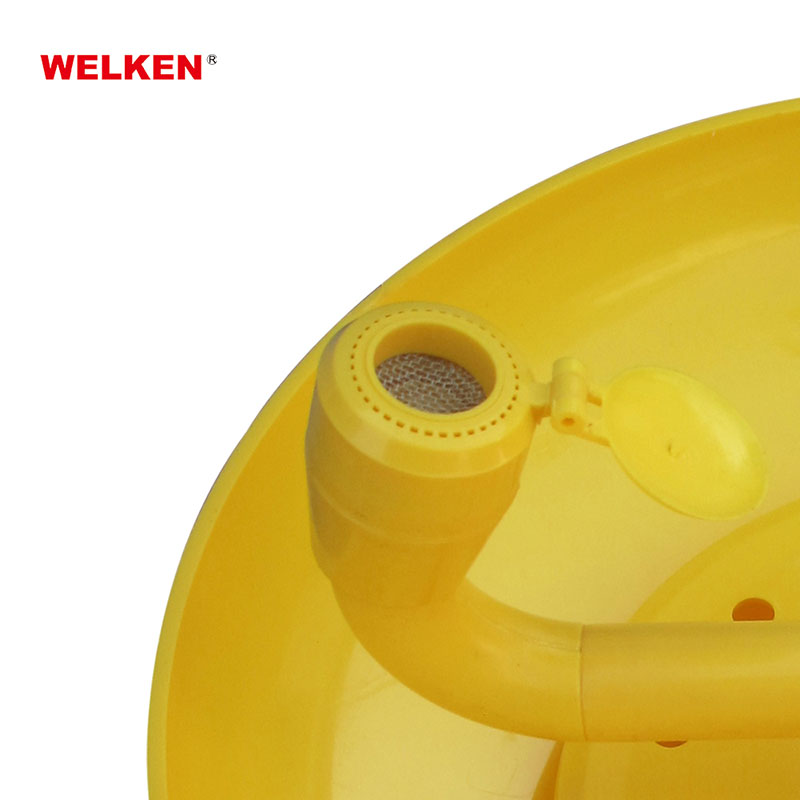

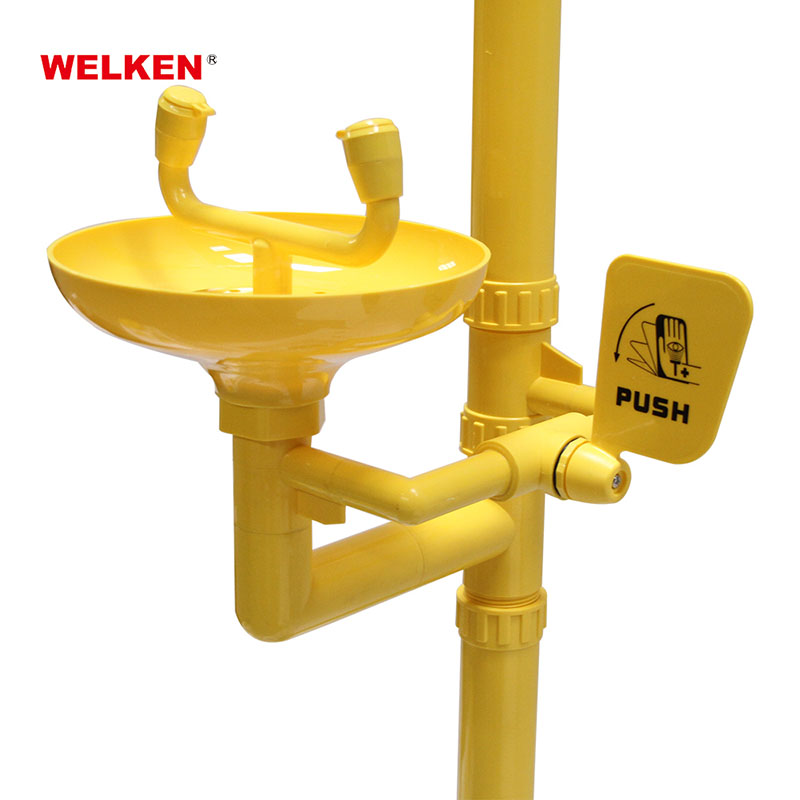

● Eye Wash Nozzle: ABS spraying with 10” ABS waste water recycle bowl, warning yellow
● Shower Valve: 1” corrosion resistant SS304 ball valve
● Eye Wash Valve: 1/2” corrosion resistant brass spool
● Supply: 1″ MNPT
● Waste: 1 1/4″ FNPT
● Eye Wash Flow: ≥11.4 L/Min Shower flow: ≥75.7 L/Min
● Hydraulic Pressure: 0.2MPA-0.4MPA
● Original Water: Drinking water or filtered water
● Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and other contaminated environment.
● Special Note: The best using ambient temperature is above 10℃.
If environmental acid concentration is too high, we suggest to choose 316 stainless steel material.
● Standard: ANSI Z358.1-2014

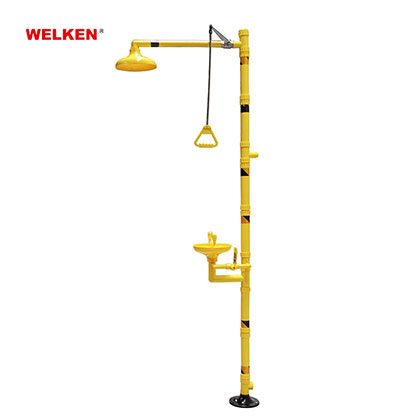

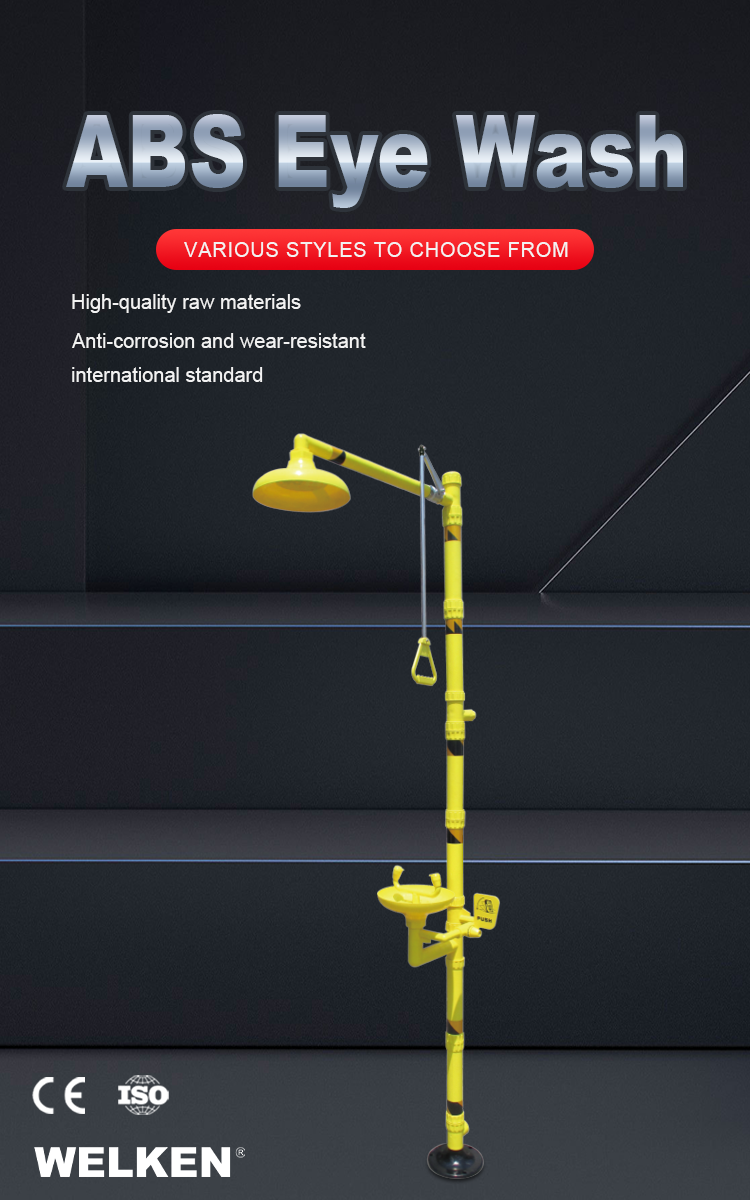

The whole body is made of high quality ABS, better corrosion resistance, economical. Warning yellow, eye-catching.
