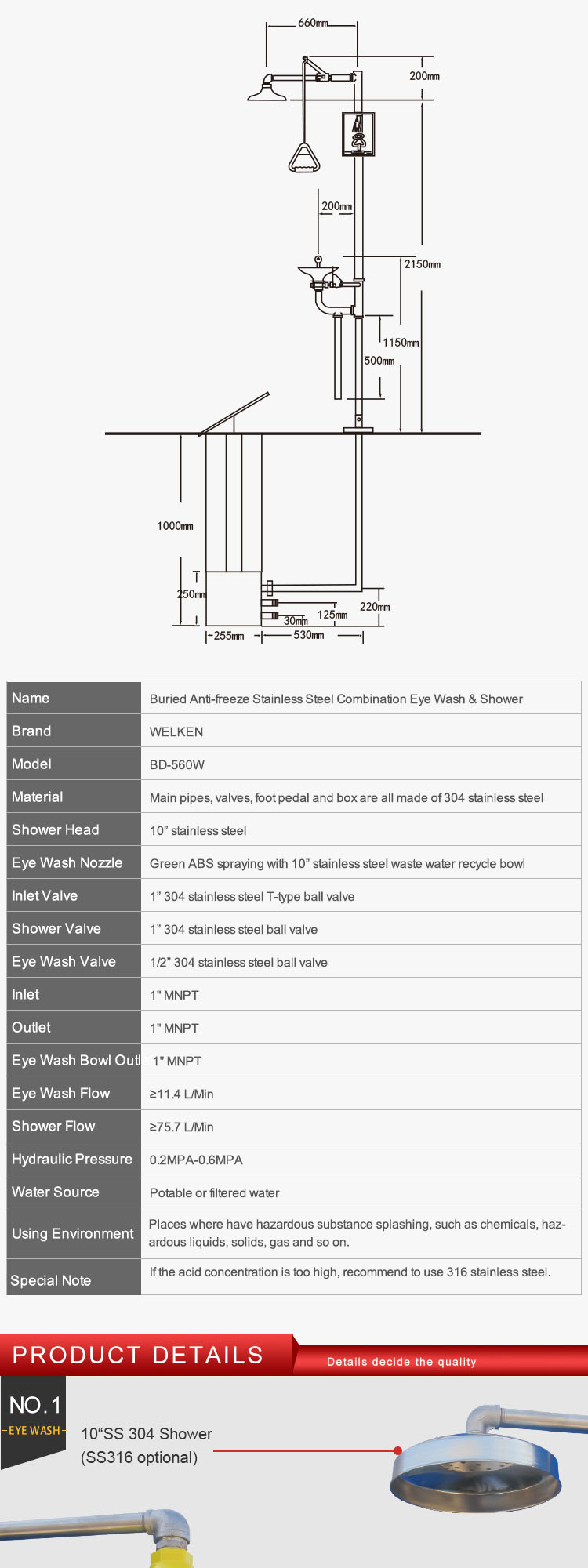

● Main pipe, valve, foot pedal and box are made of 304 stainless steel
● Head: 10” stainless steel

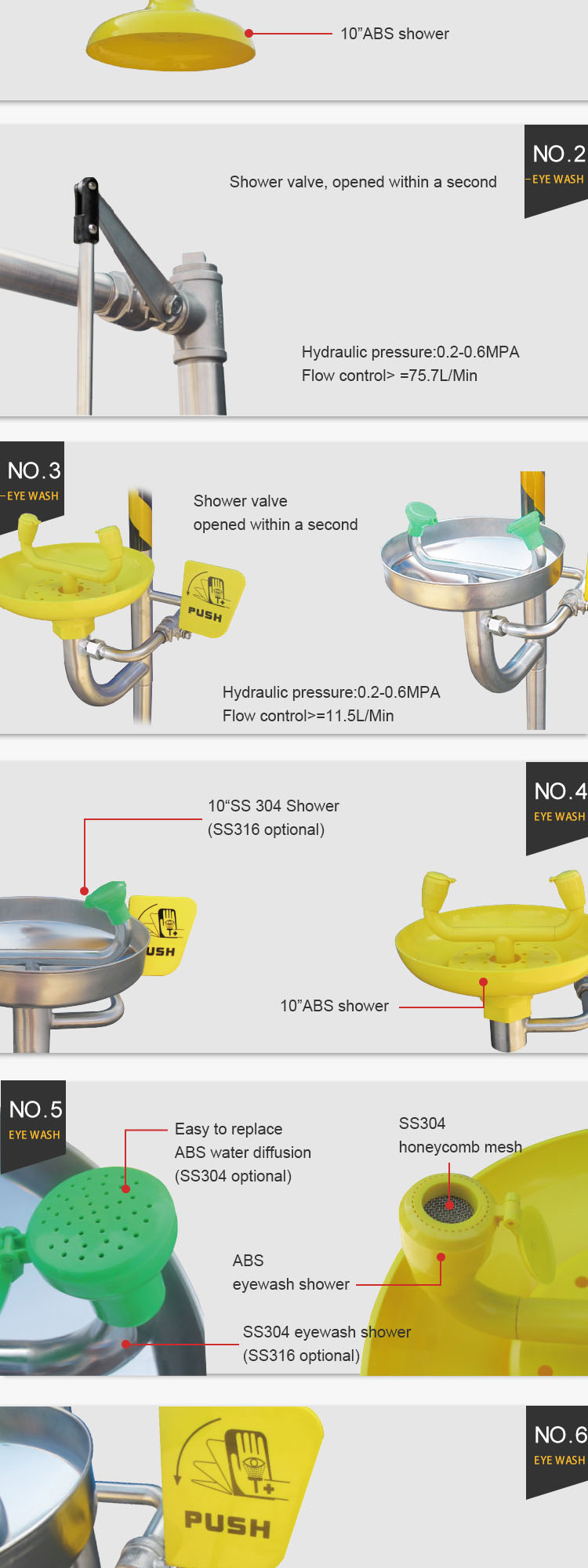

● Eye Wash Nozzle: Green ABS spraying with 10” stainless steel waste water recycle bowl

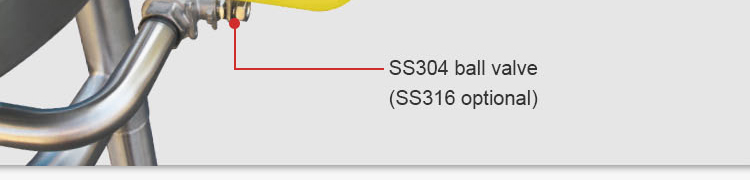

● Supply Valve: 1” 304 stainless steel T-type ball valve
● Shower Valve: 1” 304 stainless steel ball valve
● Eye Wash Valve: 1/2” 304 stainless steel ball valve
● Supply: 1″ MNPT
● Waste: 1″ MNPT
● Eye Wash Bowl Waste: 1″ MNPT
● Eye Wash Flow ≥11.4 L/Min, shower flow≥75.7 L/Min
● Hydraulic Pressure: 0.2MPA-0.6MPA
● Original Water: Drinking water or filtered water
● Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
● Special Note: If the acid concentration is too high, recommend to use 316 stainless steel.
● Standard: ANSI Z358.1-2014

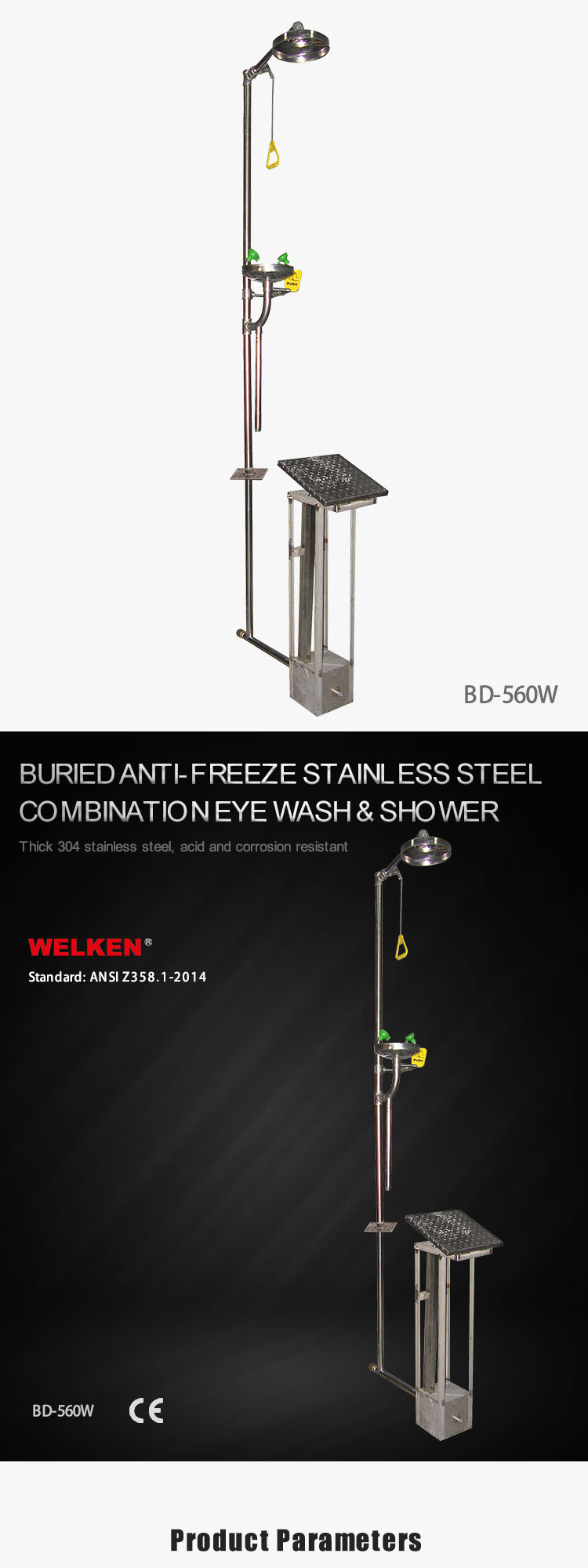

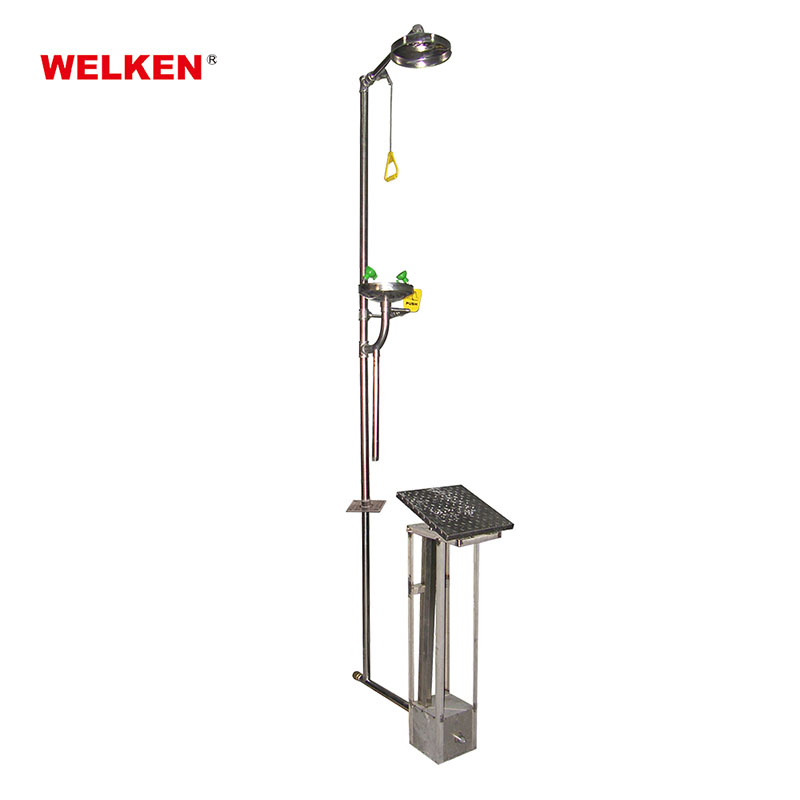

BD-560W buried anti-freeze stainless steel combination eye wash, suitable for used in permafrost ≤800mm area. Scientific buried emptying anti-freeze design, to ensure that eye wash can be normal used in the ambient temperature -15℃-45℃. When using, step the ground part foot pedal, eye wash in the water supply state, eye wash can be used normally. After using, person leaves from the pedal, and the pedal back to position automatically, the eye wash stop the water supply, and the water in eye wash will be automatically emptying at the same time, play outdoor eye wash anti-freeze effect in winter.
