Technical Data:
● Shower Valve: 1” 304 stainless steel ball valve
● Eye Wash Valve: 1/2” 304 stainless steel ball valve
● Head: ABS with warning yellow

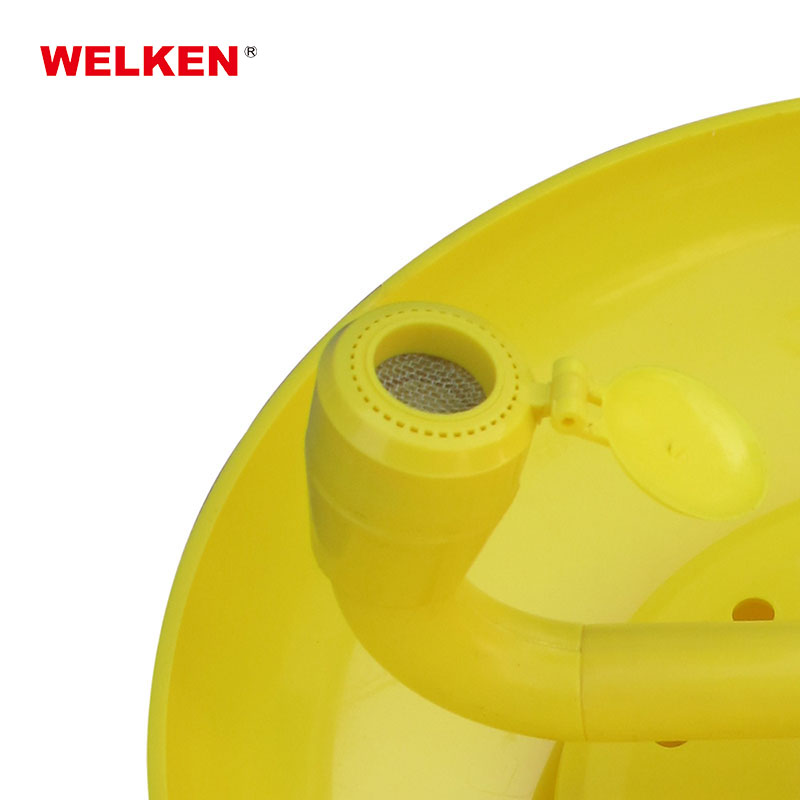

● Eye Wash Nozzle: ABS spraying with 10” ABS waste water recycle bowl, warning yellow
● Supply: 1″ MNPT
● Waste: 1 1/4″ MNPT
● Eye Wash Flow ≥11.4 L/Min, shower flow≥75.7 L/Min
● Hydraulic Pressure: 0.2MPA-0.6MPA
● Voltage: 220V~250V
● Power: 200W
● Original Water: Drinking water or filtered water
Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
● Special Note: This eye wash is used in flammable environment or explosion proof area, the standard product explosion-proof mark is Exe II T6. According to the environment to customize the corresponding explosion proof grade, slightly different appearance in kind prevail.
| BD-580 | BD-580A | BD-580B | BD-580C | |
| Using Temperature | -35℃~45℃ | -35℃~45℃ | -35℃~45℃ | -35℃~45℃ |
| Remark | Stainless steel with electrical heating water tank,the volume is 350L. | Explosion proof lighting, sound and light alarm, flow switch, and junction box. | Explosion proof sound and light alarm, flow switch, and junction box. |
● Standard: ANSI Z358.1-2014

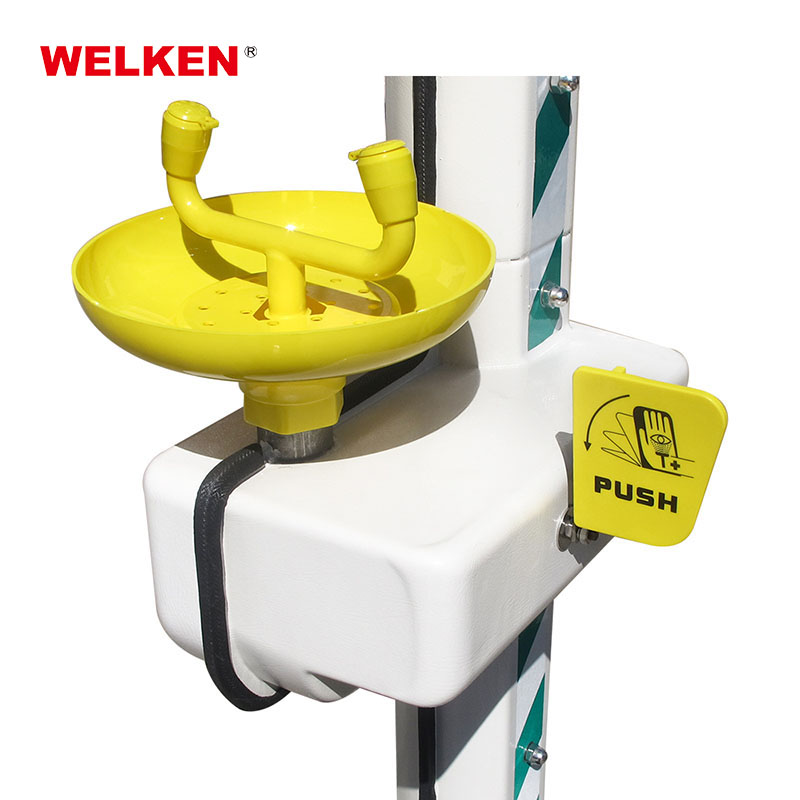

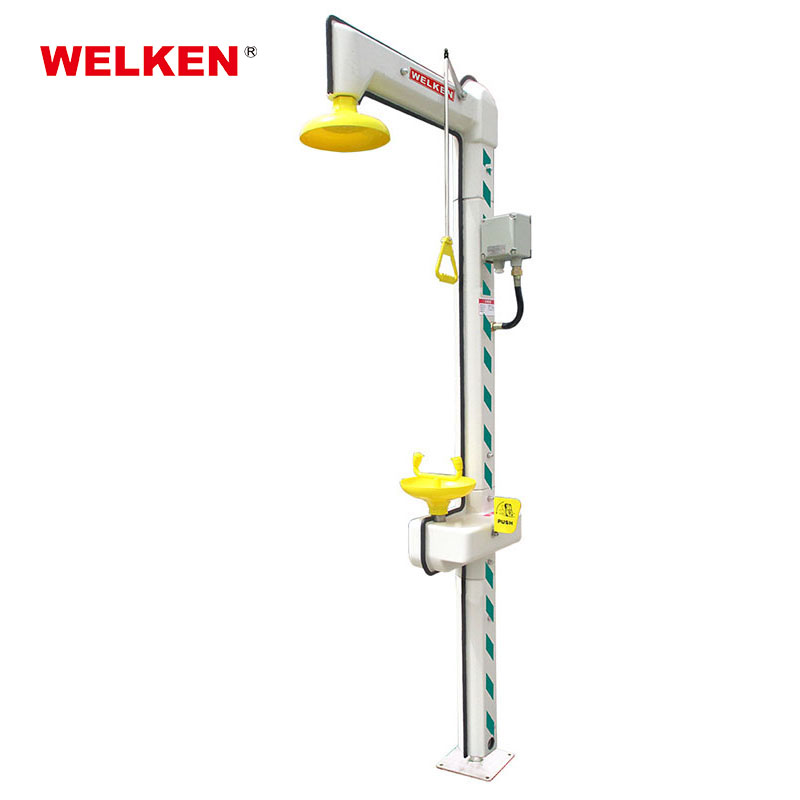

The cable heated eye wash shower of BD-580 is antifreeze for outdoor, which provides emergency assistance and primary treatment. It can be used between -35℃~45℃, It composes main pipe, heat cable, inner and outer heat preservation layer, junction box and the main pipe is made of 304 stainless steel.
