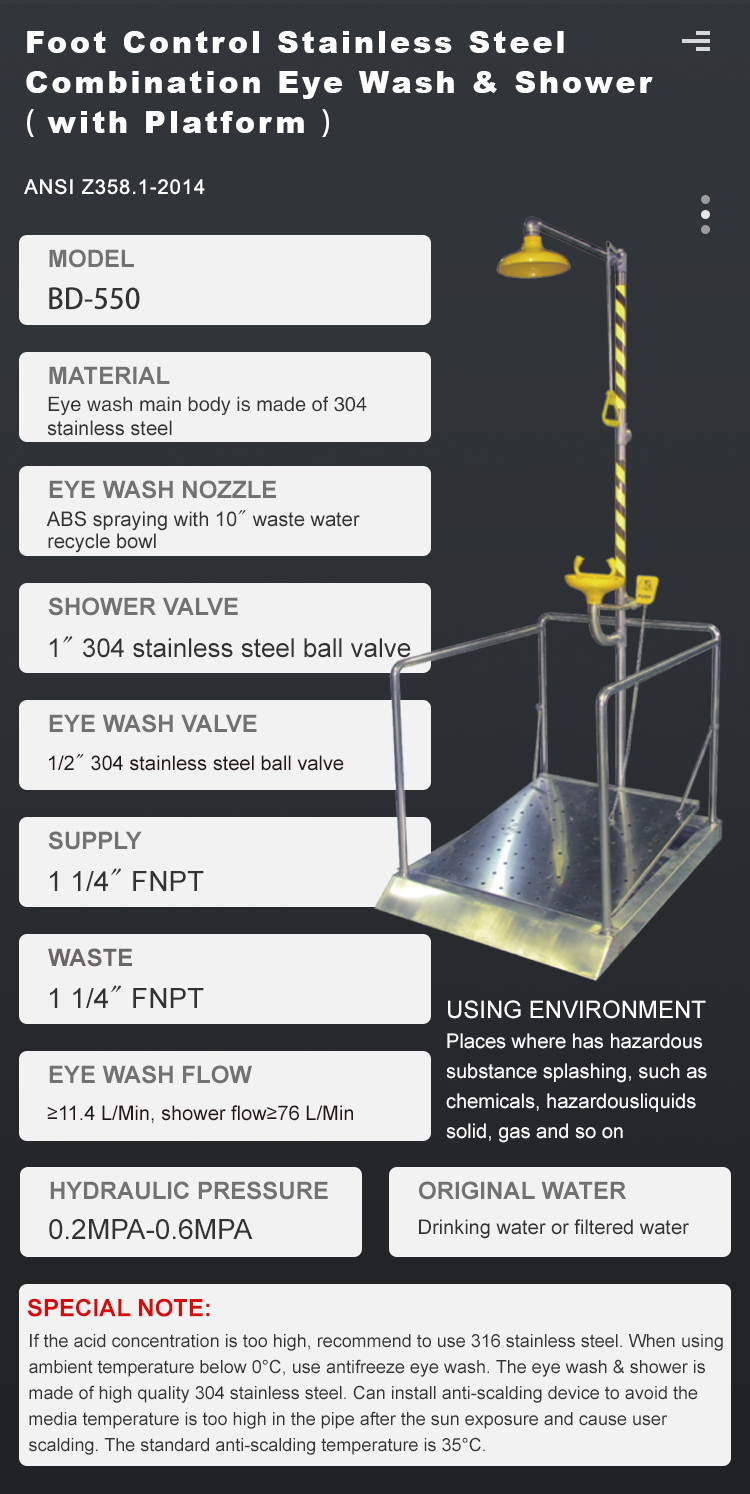

Technical Data:
● Main Body: High quality 304 stainless steel

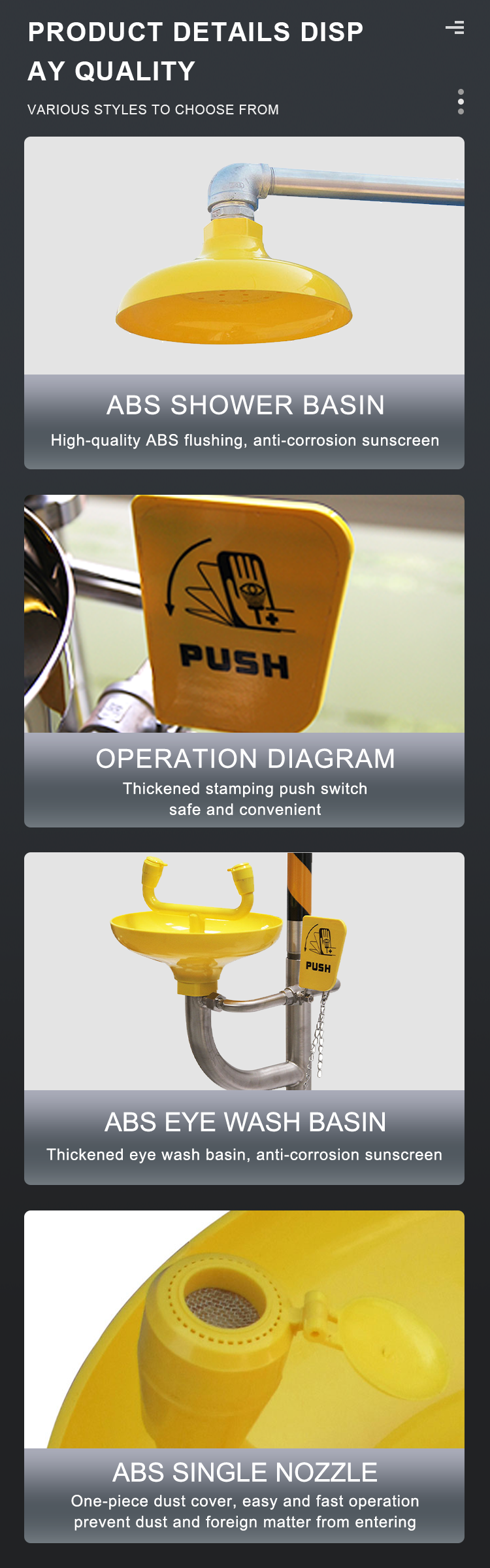

● Head: 10″ ABS

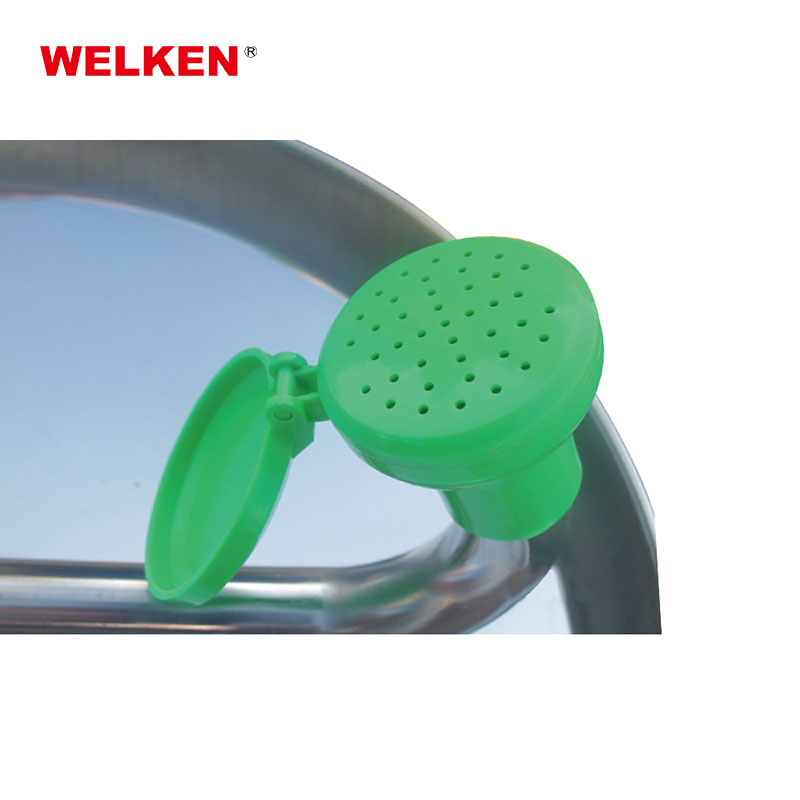

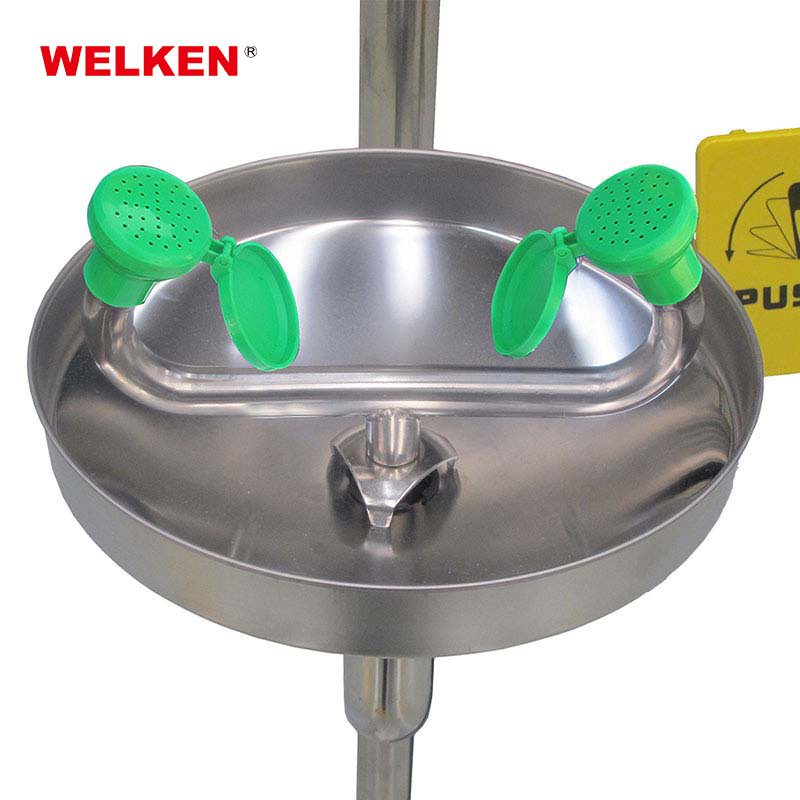

● Eye Wash Nozzle: ABS spraying with 10″ ABS waste water recycle bowl
● Shower Valve: 1″304 stainless steel ball valve
● Eye Wash Valve: 1/2” 304 stainless steel ball valve
● Supply: 1 1/4″ FNPT
● Waste: 1 1/4″ FNPT
● Eye Wash Flow ≥11.4 L/Min, Shower flow≥75.7 L/Min
● Hydraulic Pressure: 0.2MPA-0.6MPA
● Original Water: Drinking water or filtered water
● Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
● Special Note: If the acid concentration is too high, recommend to use 316 stainless steel.
When using ambient temperature below 0℃, use antifreeze eye wash.

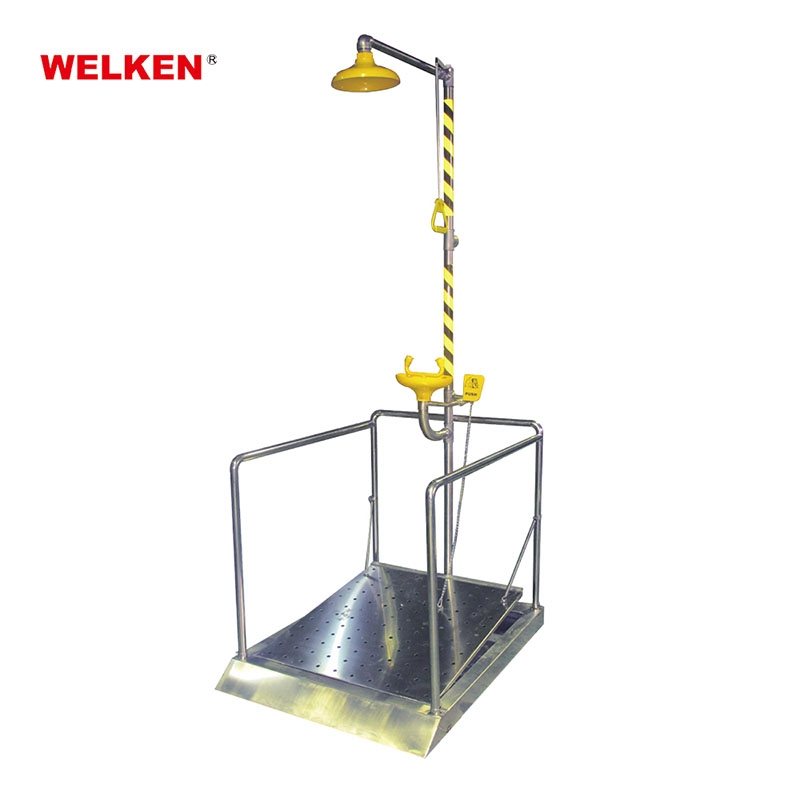

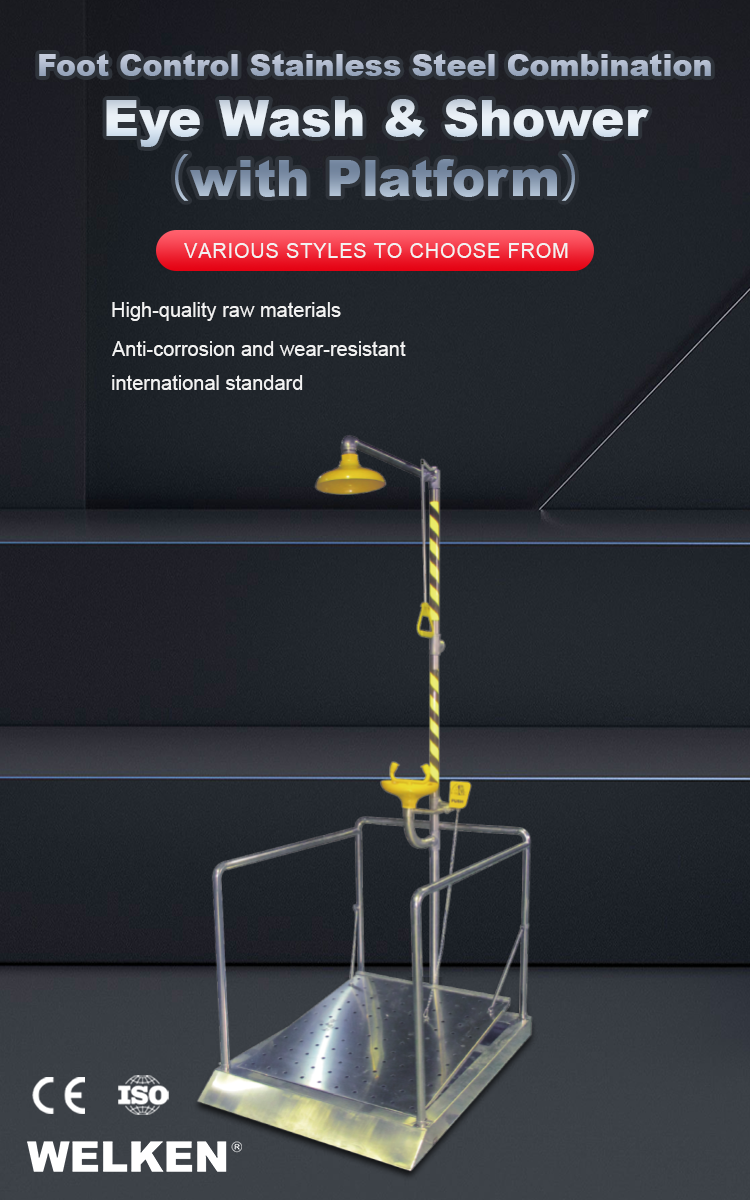

The eye wash & shower is made of high quality 304 stainless steel.
Can install anti-scalding device to avoid the media temperature is too high in the pipe after the sun exposure and cause user scalding.
The standard anti-scalding temperature is 35℃.
● Standard: ANSI Z358.1-2014
