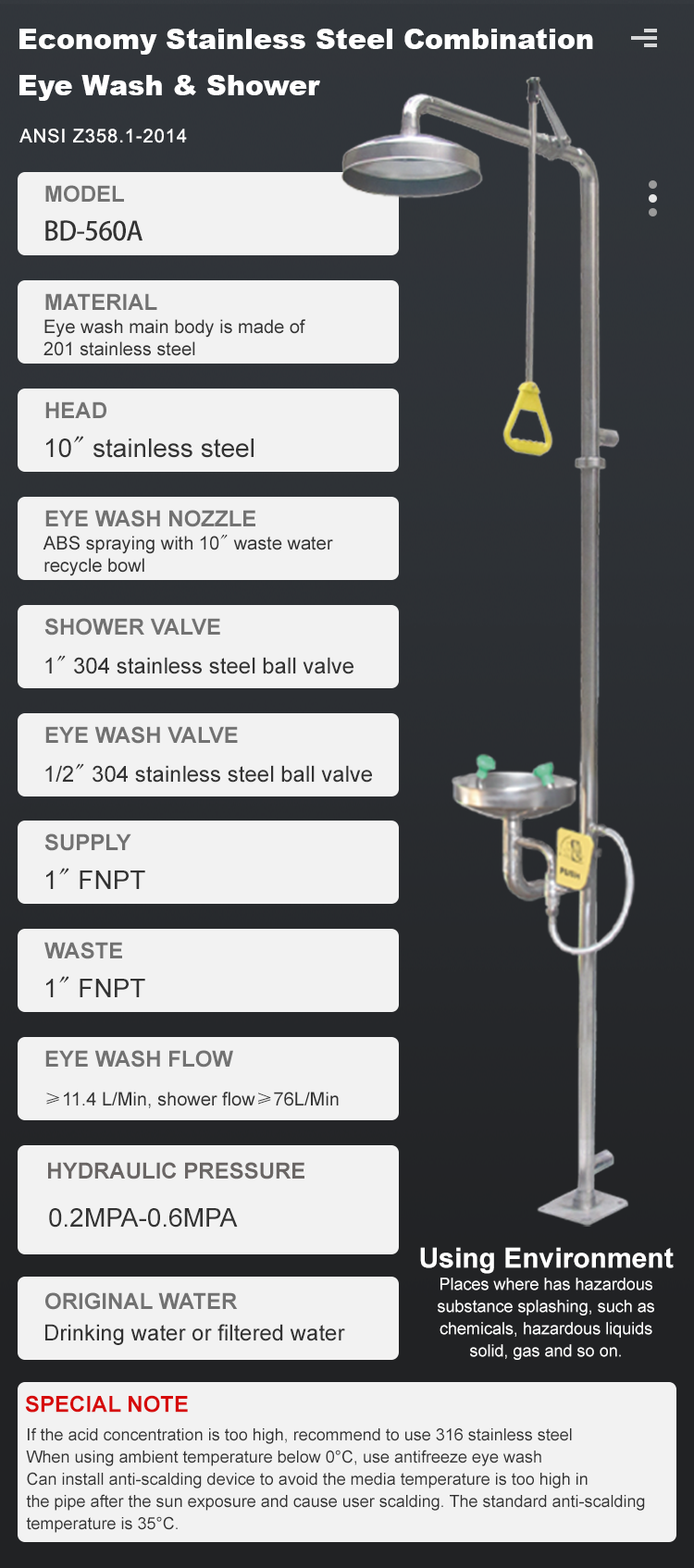

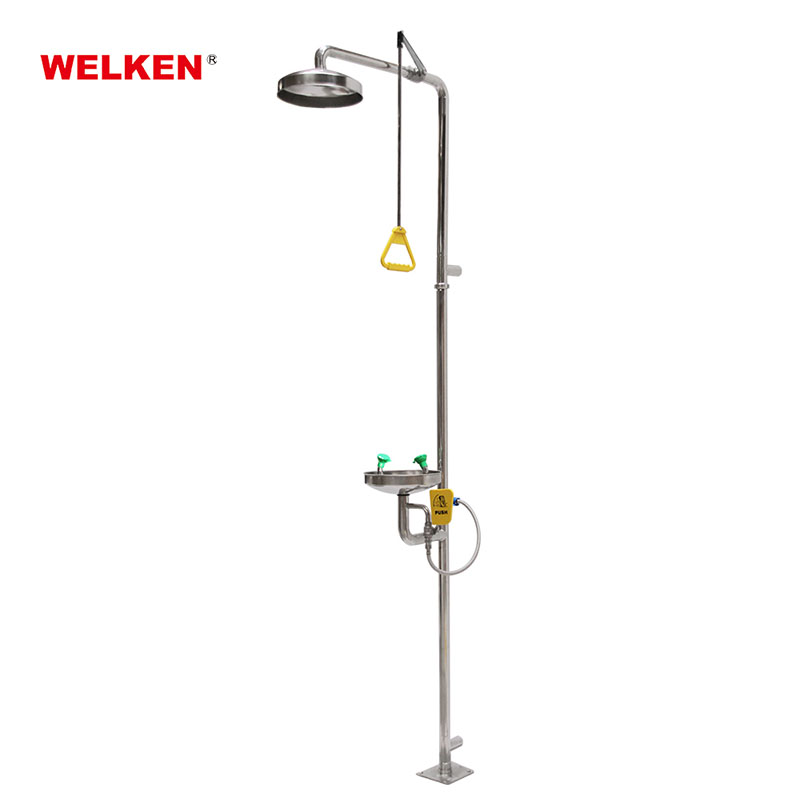

Technical Data:

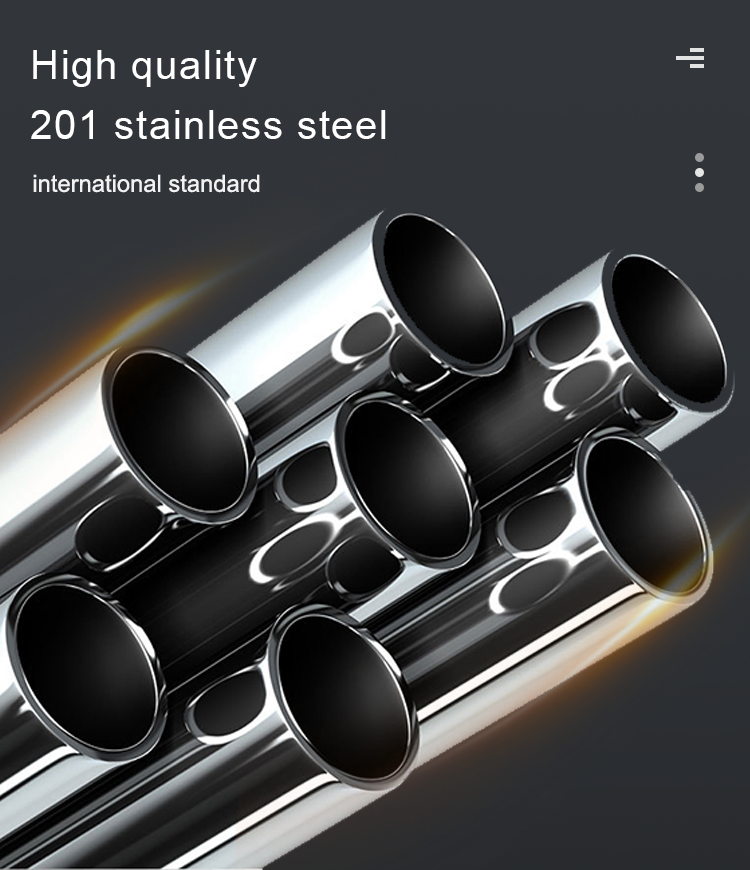

● Main Body: High quality 201 stainless steel
● Head: 10″ stainless steel

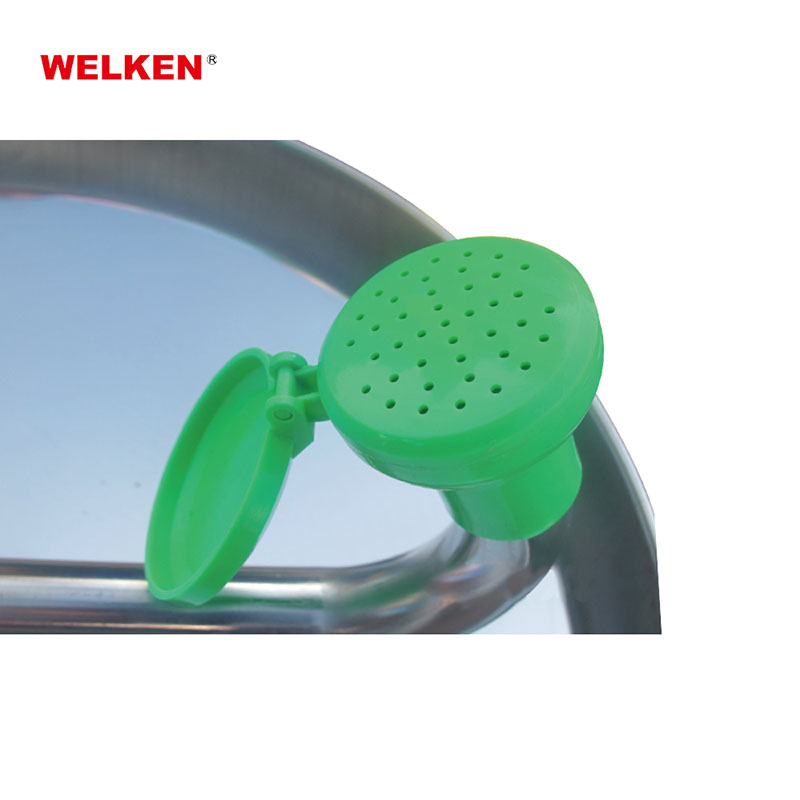

● Eye Wash Nozzle: Green ABS spraying with 10” stainless steel waste water recycle bowl
● Shower Valve: 1″ stainless steel ball valve

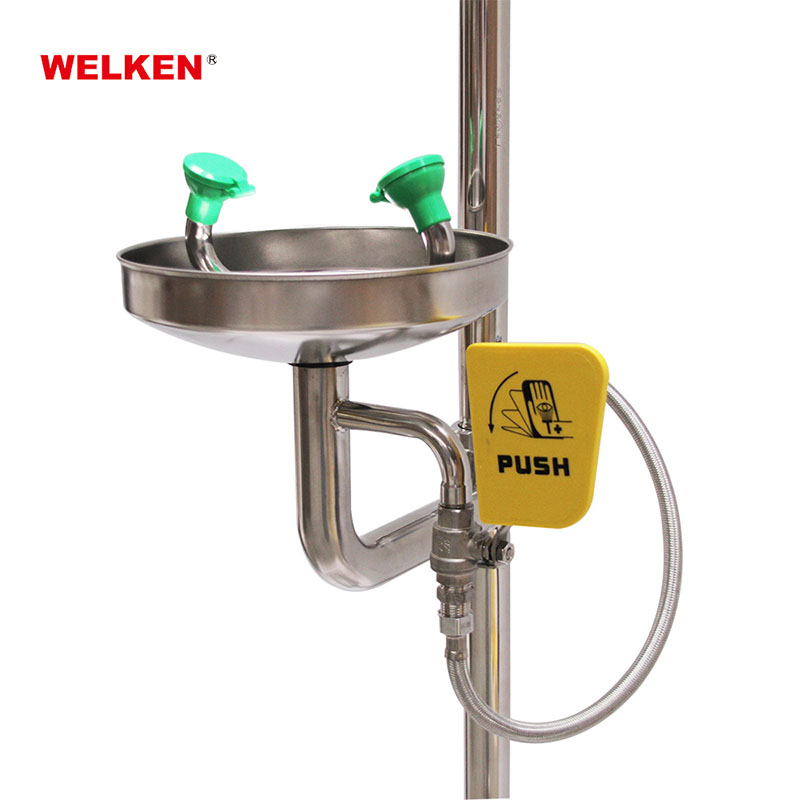

● Eye Wash Valve: 1/2″ stainless steel ball valve
● Supply: 1″ FNPT
● Waste: 1″ FNPT
● Eye Wash Flow ≥11.4 L/Min, Shower flow≥75.7 L/Min
● Hydraulic Pressure: 0.2MPA-0.6MPA
● Original Water: Drinking water or filtered water
● Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
● Special Note: If the acid concentration is too high, recommend to use 316 stainless steel.
When using ambient temperature below 0℃, use antifreeze eye wash.
Can install anti-scalding device to avoid the media temperature is too high in the pipe after the sun exposure and cause user scalding. The standard anti-scalding temperature is 35℃.
● Standard: ANSI Z358.1-2014
