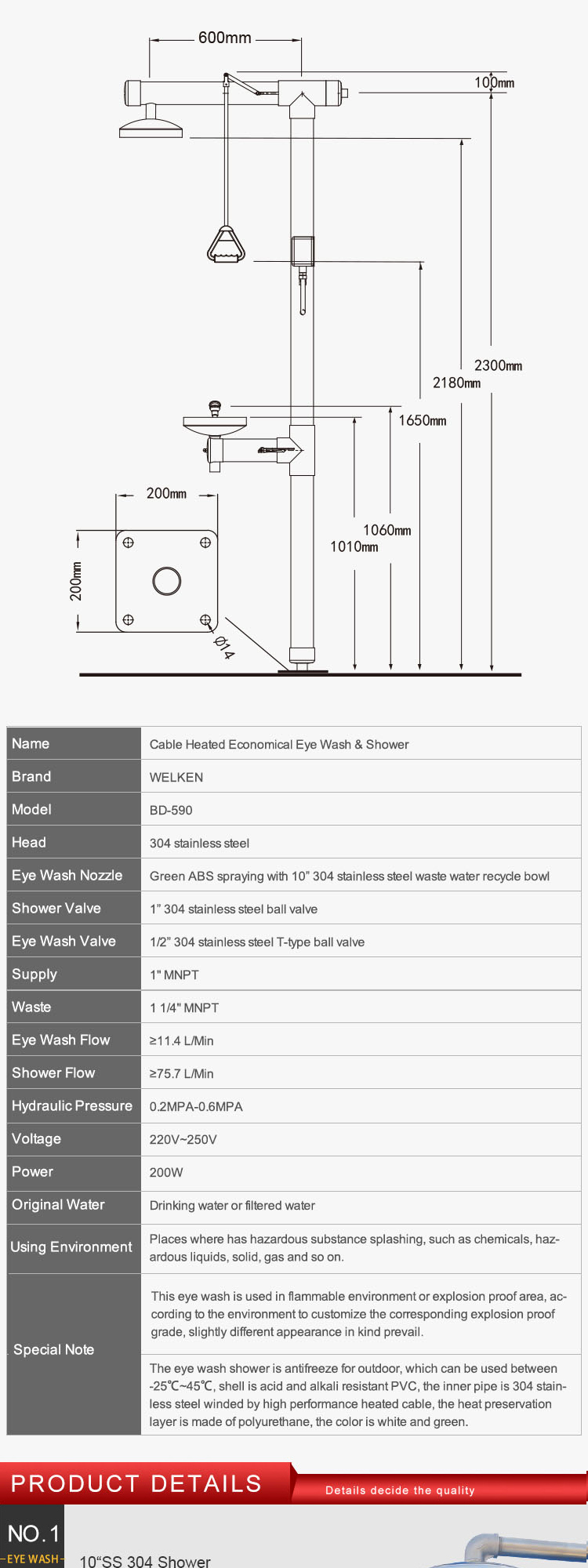

Technical Data:

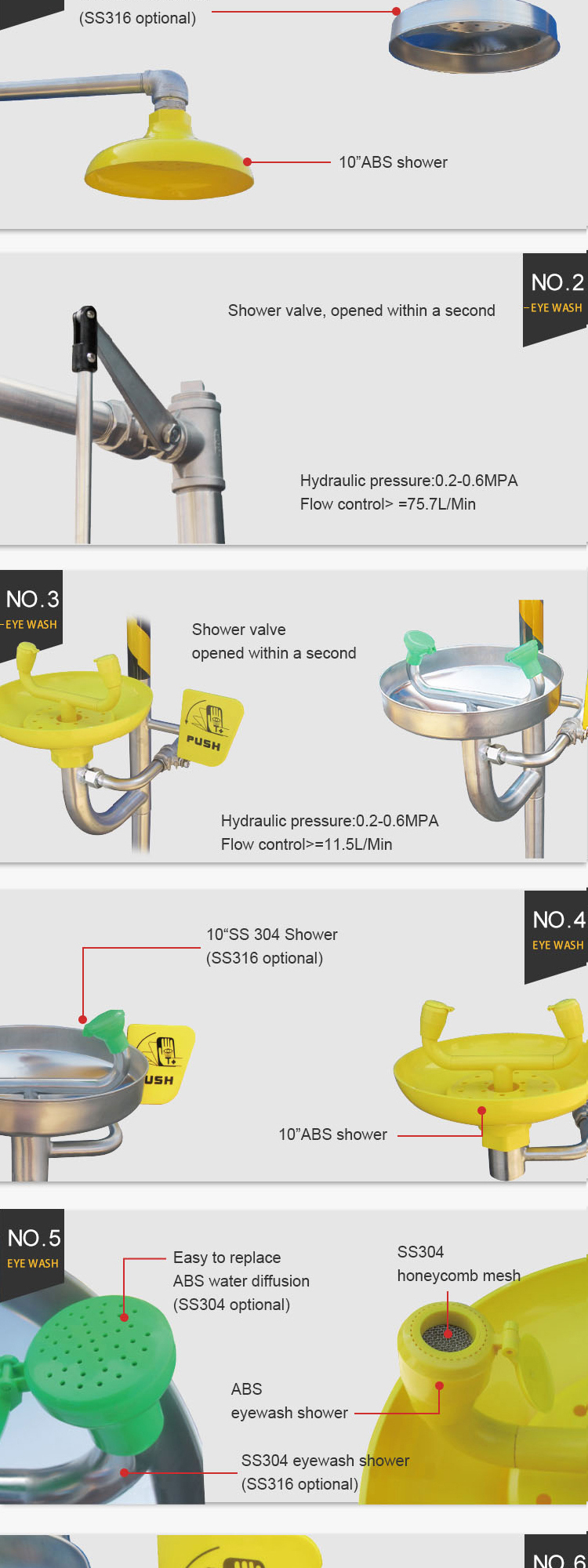

● Shower Valve: 1” 304 stainless steel ball valve

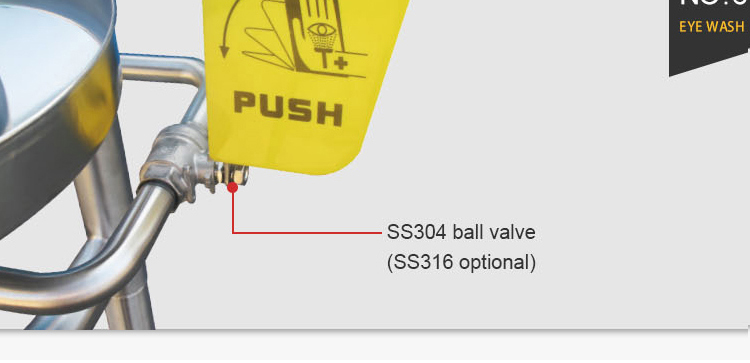

● Eye Wash Valve: 1/2” 304 stainless steel ball valve
● Head: 304 stainless steel
● Eye Wash Nozzle: Green ABS spraying with 10” 304 stainless steel waste water recycle bowl
● Supply: 1″ MNPT
● Waste: 1 1/4” MNPT
● Eye Wash Flow ≥11.4 L/Min, shower flow≥75.7 L/Min
● Hydraulic Pressure: 0.2MPA-0.6MPA
● Voltage: 220V~250V
● Power: 200W
● Original Water: Drinking water or filtered water
● Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
● Special Note: This eye wash is used in flammable environment or explosion proof area, the standard product explosion-proof mark is Exe II T6. According to the environment to customize the corresponding explosion proof grade, slightly different appearance in kind prevail.
● Standard: ANSI Z358.1-2014
The eye wash shower is antifreeze for outdoor, which can be used between -35℃~45℃, shell is acid and alkali resistant PVC, the inner pipe is 304 stainless steel winded by high performance heated cable, the heat preservation layer is made of rock wool, the color is white and green.
