Technical Data:
● Shower Valve: 1” 304 stainless steel ball valve

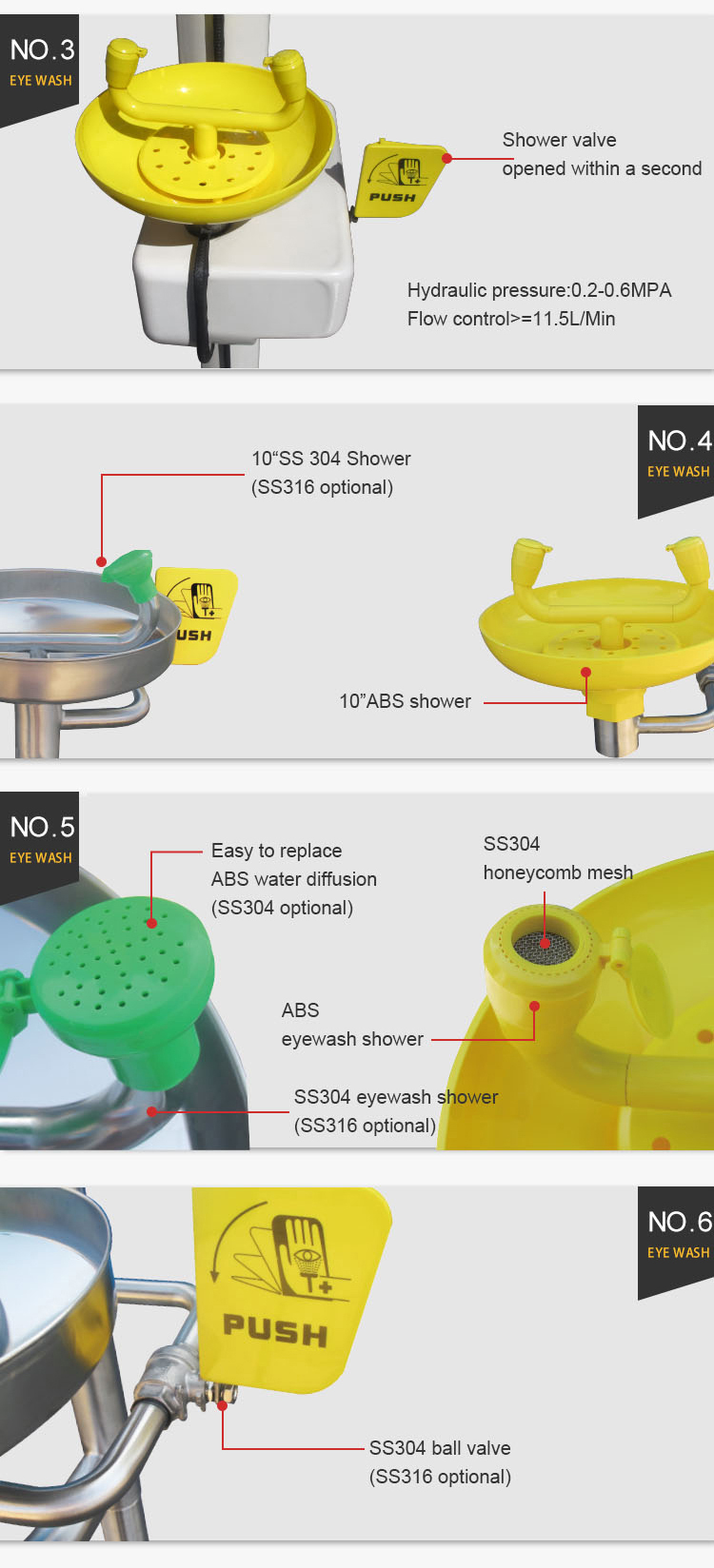

● Eye Wash Valve: 1/2” 304 stainless steel ball valve
● Head: ABS with warning yellow

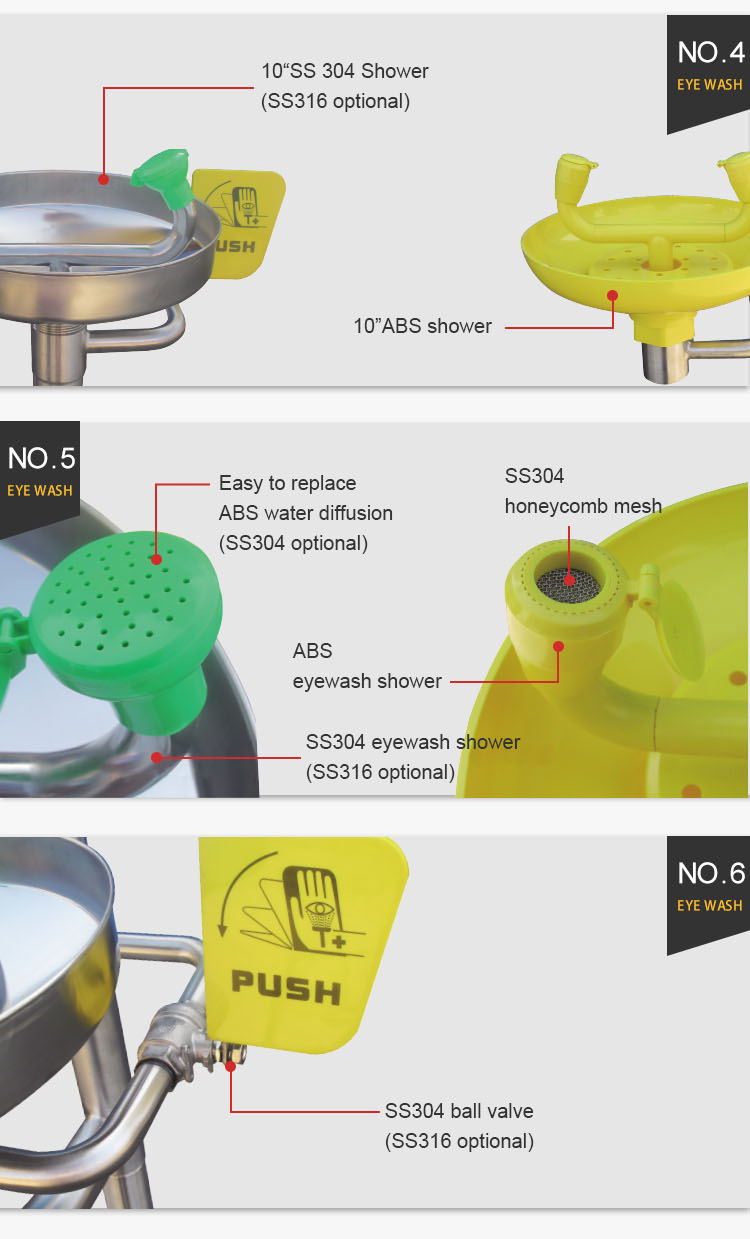

● Eye Wash Nozzle: ABS spraying with 10” ABS waste water recycle bowl, warning yellow
● Supply: 1″ MNPT
● Waste: 1 1/4″ MNPT
● Eye Wash Flow ≥11.4 L/Min, shower flow≥75.7 L/Min
● Hydraulic Pressure: 0.2MPA-0.6MPA
● Voltage: 220V~250V
● Power: 800W
● Original Water: Drinking water or filtered water
● Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
● Special Note: This eye wash is used in flammable environment or explosion proof area, the standard product explosion-proof mark is Exe II T6. According to the environment to customize the corresponding explosion proof grade, slightly different appearance in kind prevail.

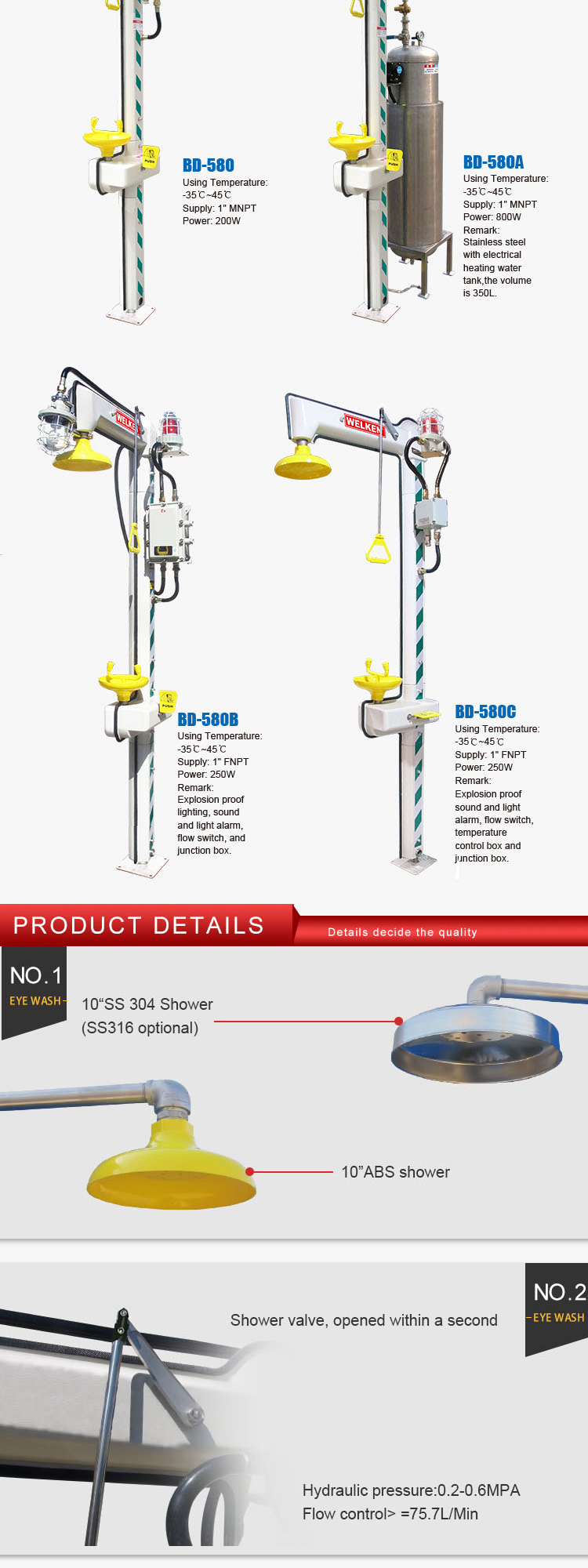

| BD-580 | BD-580A | BD-580B | BD-580C | |
| Using Temperature | -35℃~45℃ | -35℃~45℃ | -35℃~45℃ | -35℃~45℃ |
| Remark | Stainless steel with electrical heating water tank,the volume is 350L. | Explosion proof lighting, sound and light alarm, flow switch, and junction box. | Explosion proof sound and light alarm, flow switch, and junction box. |
● Standard: ANSI Z358.1-2014

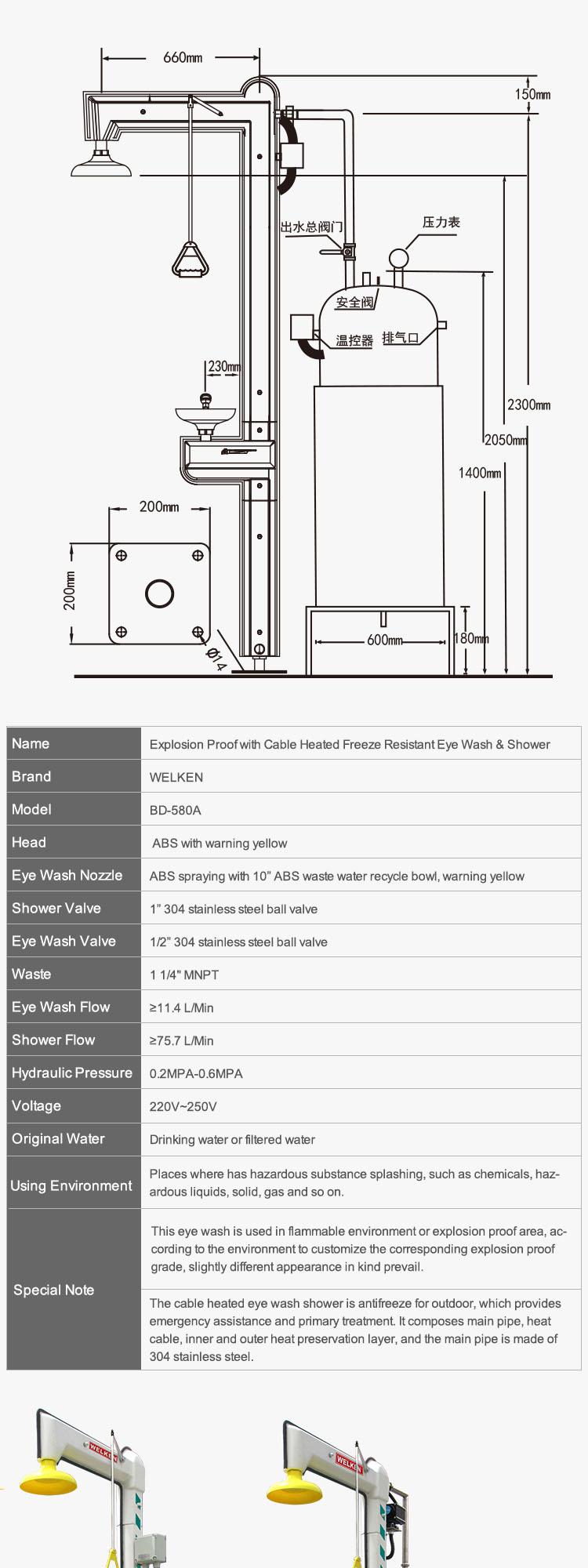

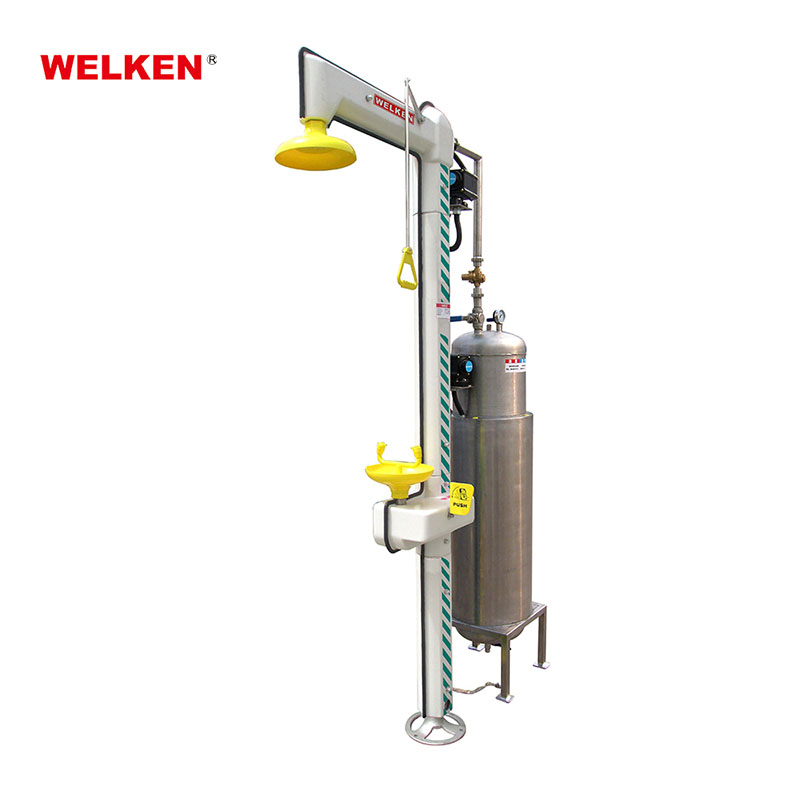

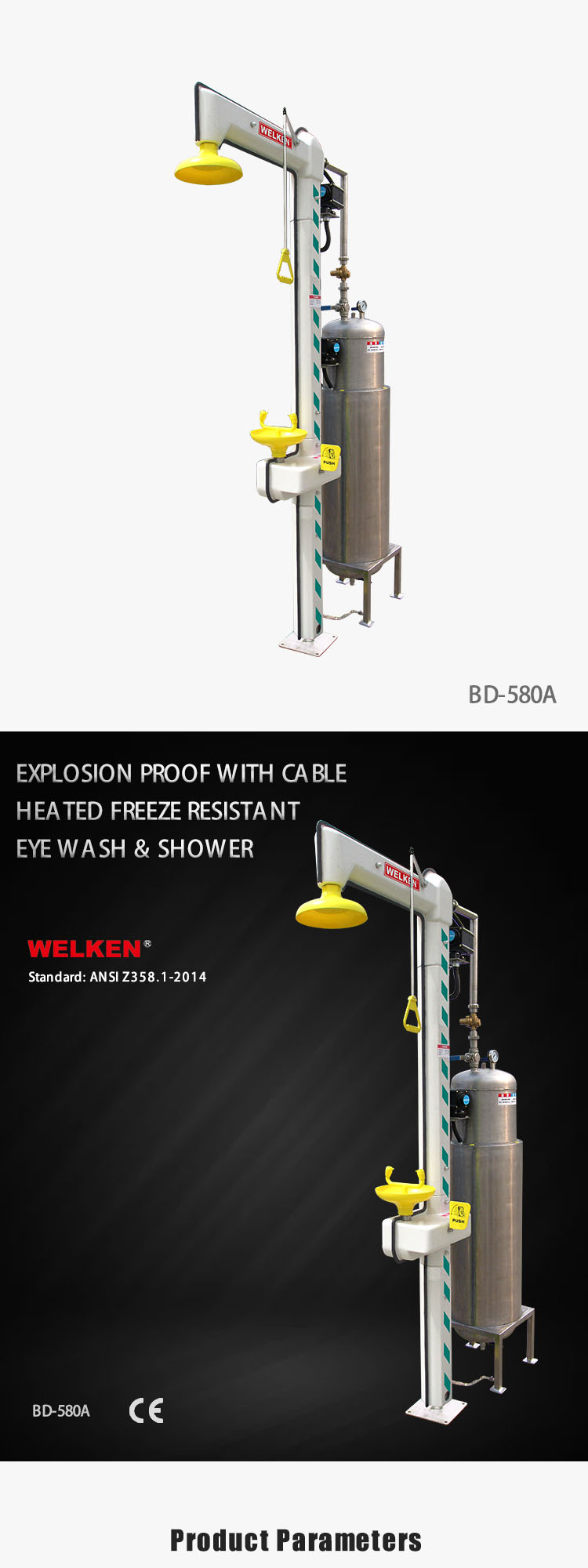

The cable heated eye wash shower of BD-580A is antifreeze for outdoor, which provides emergency assistance and primary treatment, It can be used between -35℃~45℃, the water storage tank use stainless steel electric heating water system and the storage capacity is 350L, it can be customized according to customer’s demand. Water storage tank uses air pressure to supply water for eye wash shower, customer is required to have the conditions to charging for water storage tank. It composes main pipe, heat cable, inner and outer heat preservation layer, junction box and the main pipe is made of 304 stainless steel.
