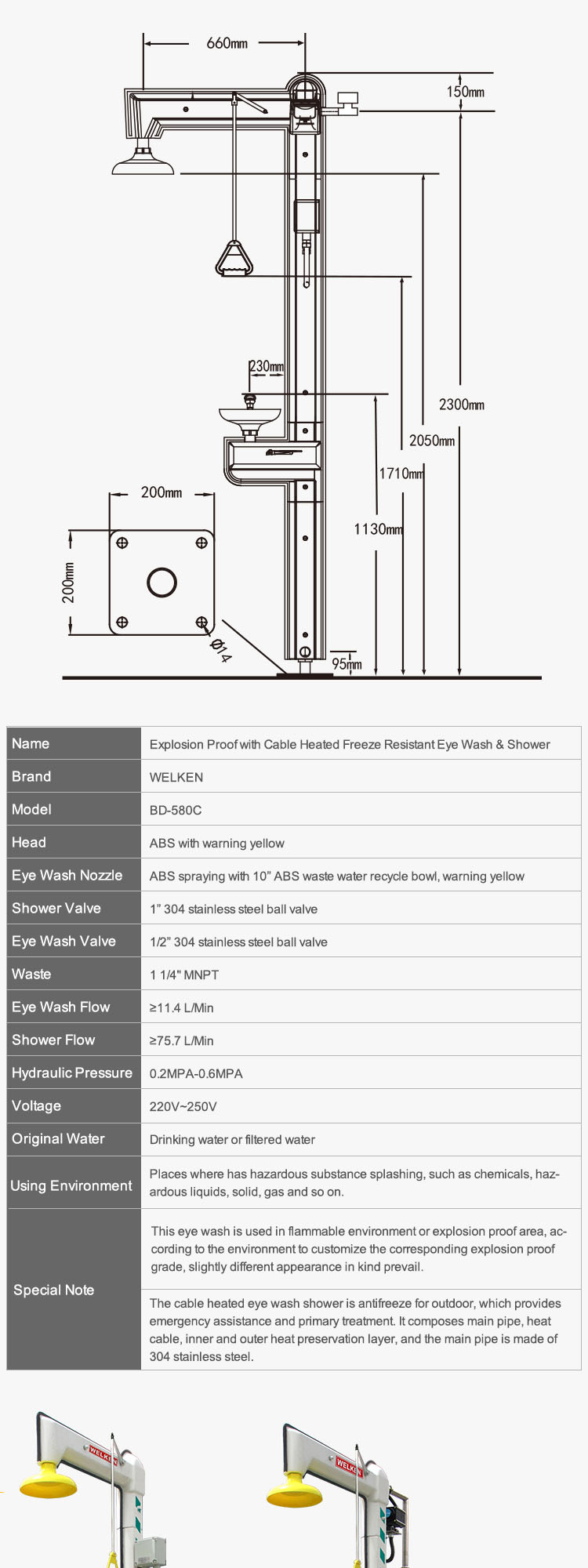

Technical Data:

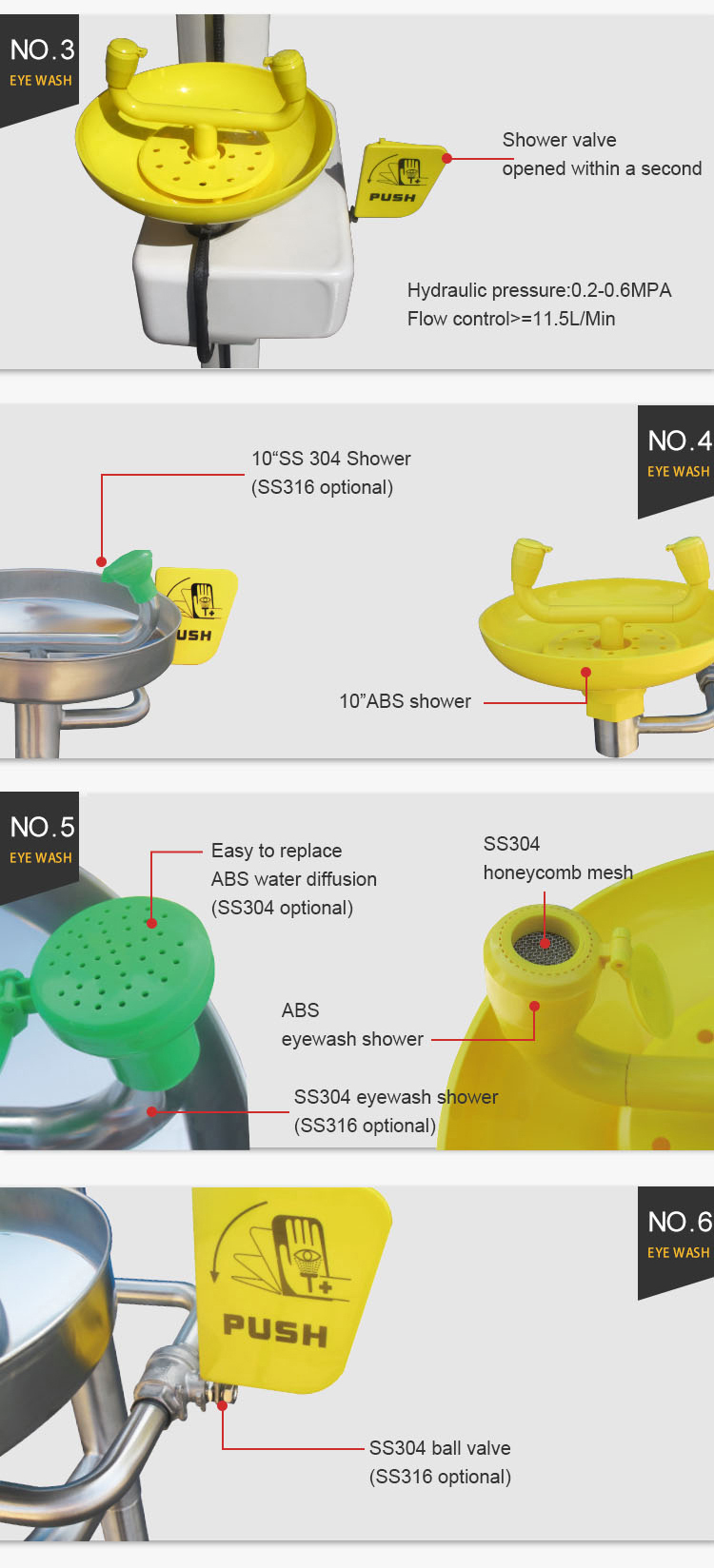

● Shower Valve: 1” 304 stainless steel ball valve
● Eye Wash Valve: 1/2” 304 stainless steel ball valve
● Head: ABS with warning yellow
● Eye Wash Nozzle: ABS spraying with 10” ABS waste water recycle bowl, warning yellow
● Supply: 1″ FNPT
● Waste: 1 1/4″ MNPT
● Eye Wash Flow ≥11.4 L/Min, shower flow≥75.7 L/Min
● Hydraulic Pressure: 0.2MPA-0.6MPA
● Voltage: 220V~250V
● Power: 250W
● Original Water: Drinking water or filtered water
● Using Environment: Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on.
● Special Note: This eye wash is used in flammable environment or explosion proof area, the standard product explosion-proof mark is Exe II T6. According to the environment to customize the corresponding explosion proof grade, slightly different appearance in kind prevail.

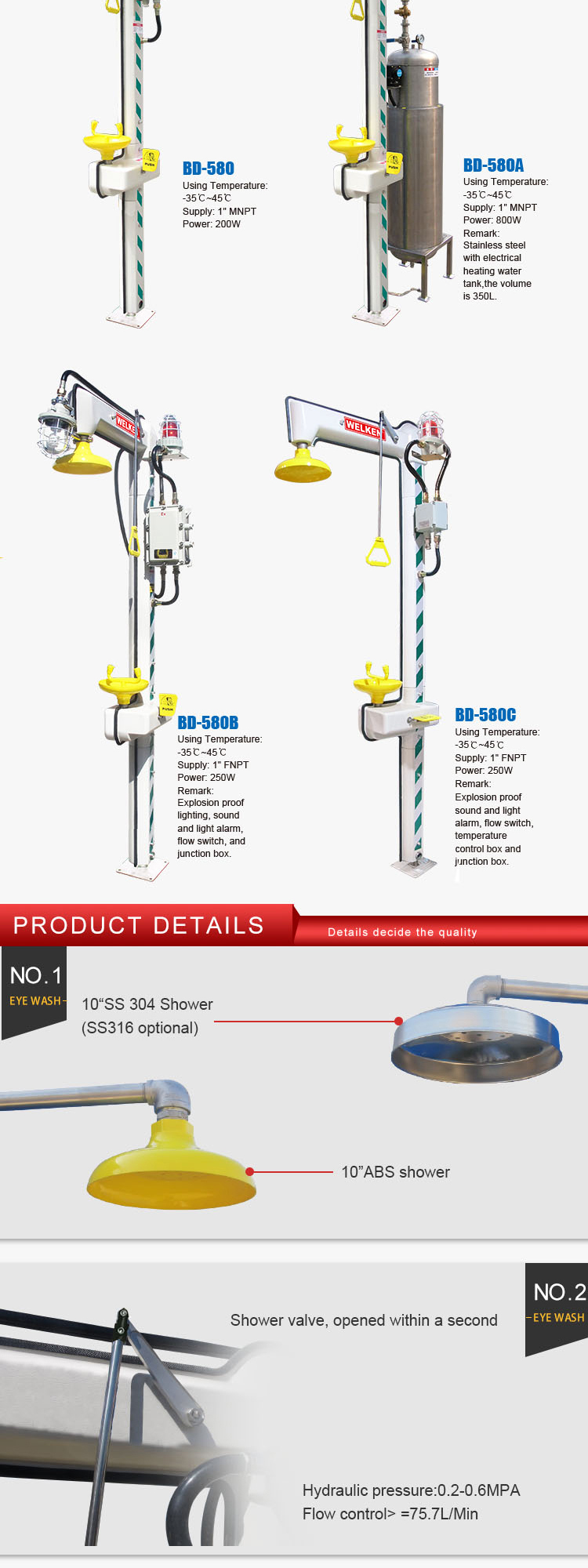

| BD-580 | BD-580A | BD-580B | BD-580C | |
| Using Temperature | -35℃~45℃ | -35℃~45℃ | -35℃~45℃ | -35℃~45℃ |
| Remark | Stainless steel with electrical heating water tank,the volume is 350L. | Explosion proof lighting, sound and light alarm, flow switch, and junction box. | Explosion proof sound and light alarm, flow switch, and junction box. |
● Standard: ANSI Z358.1-2014

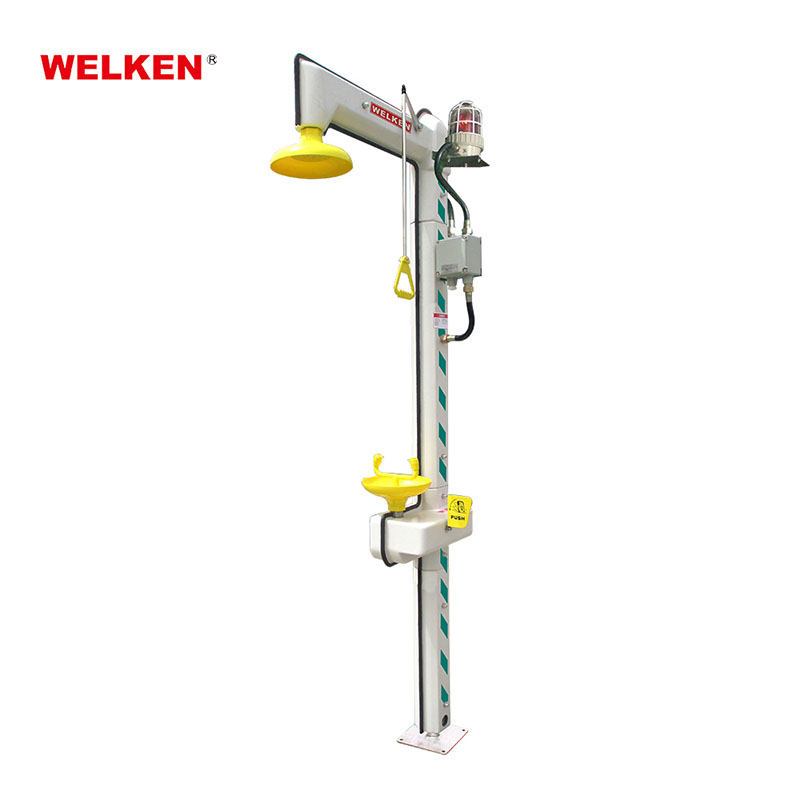

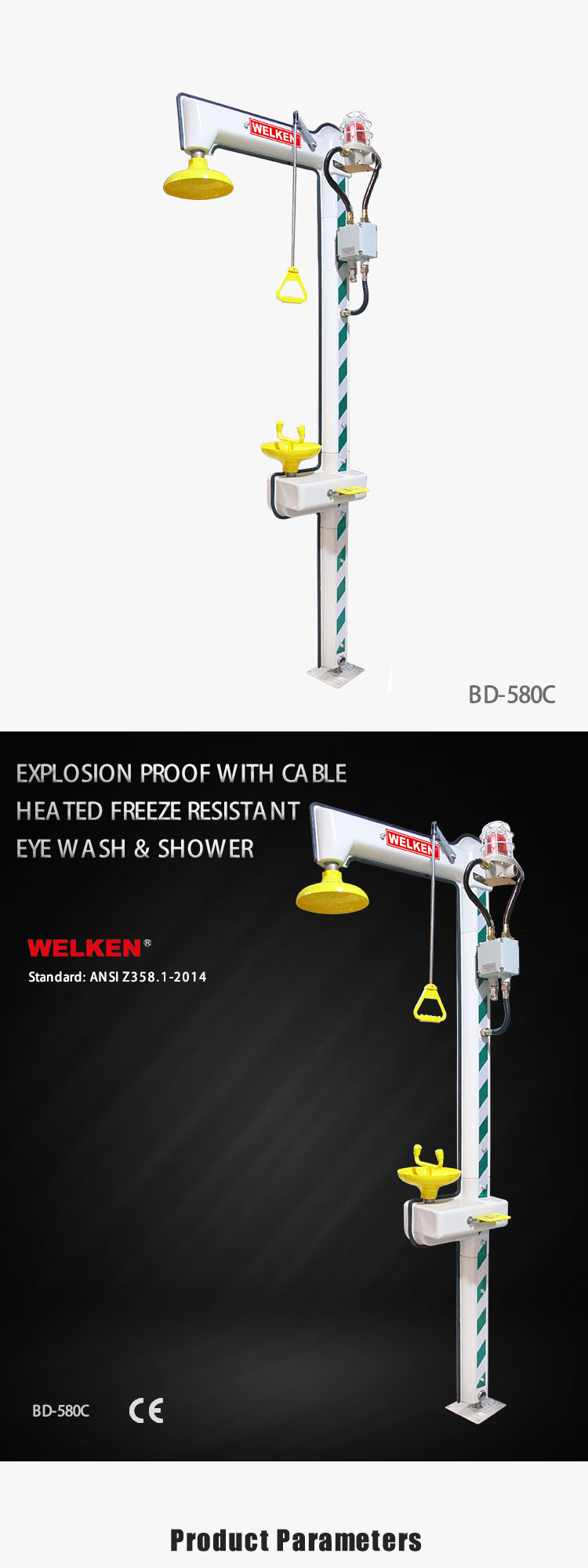

BD-580C is an outdoor freeze-resistant eyewash/shower with alarming functions for emergency aid and first treatment in temperature from -35℃~45℃, The alarm will work or send a sign to the controlling room when eye wash is open. It is mainly composed of pipe (SS304), heating tape, inner heat layer, outside heat layer, combined aural and visual alarm, flow switch and explosion proof junction box.
